The Atlas® PX16A is the ultimate commercial-grade alignment solution for service shops that demand versatility, precision, and space efficiency. This 16,000 lb. capacity scissor alignment lift is engineered to handle everything from compact passenger cars to heavy-duty long wheelbase trucks and vans—all while maintaining a narrow footprint that maximizes your shop floor. Paired with the RJ8A 8,000 lb. air/hydraulic rolling jack, this combo delivers a complete alignment and service system for the modern professional shop. Whether you're aligning a Smart Car® or lifting an F-450 dual-wheel truck, this combo gives you the capacity, reach, and precision to get the job done right.

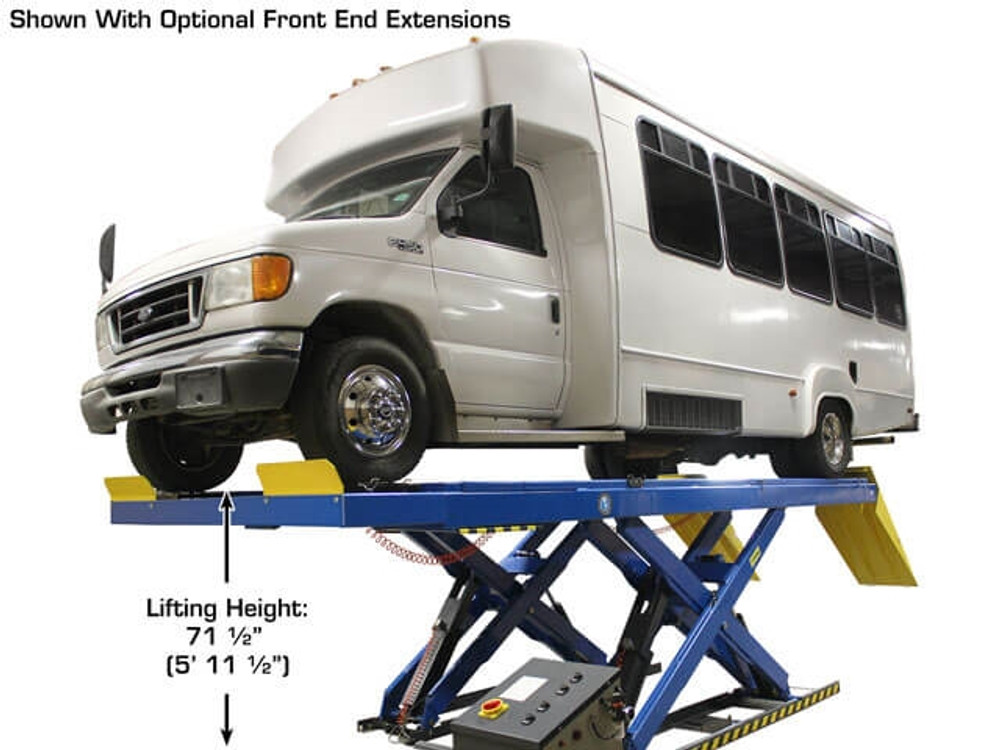

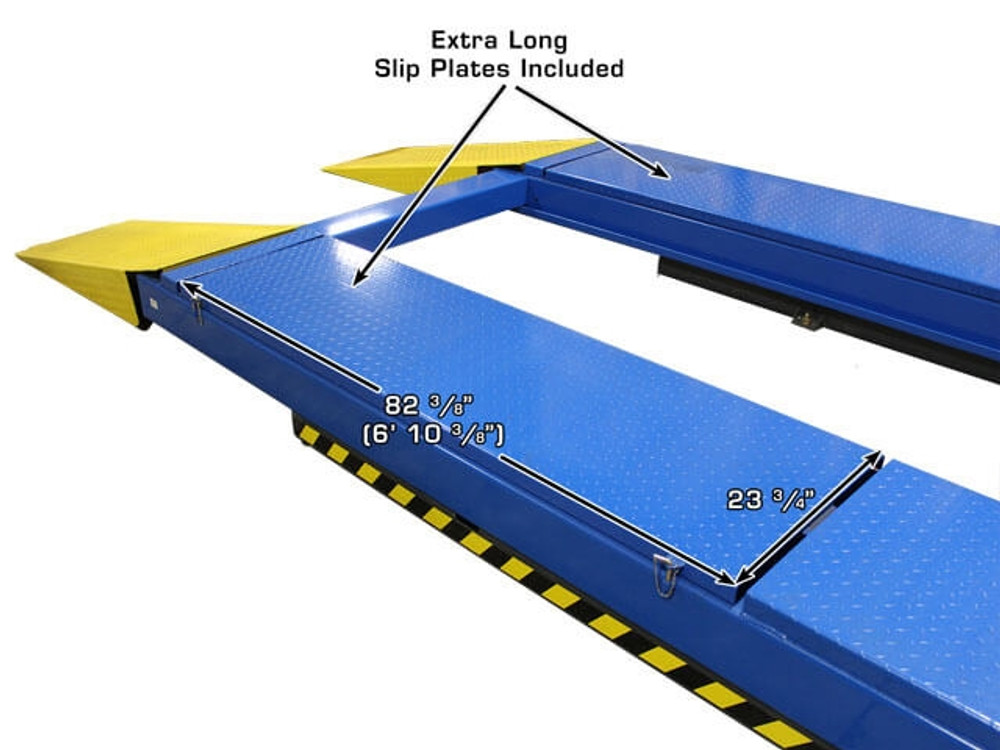

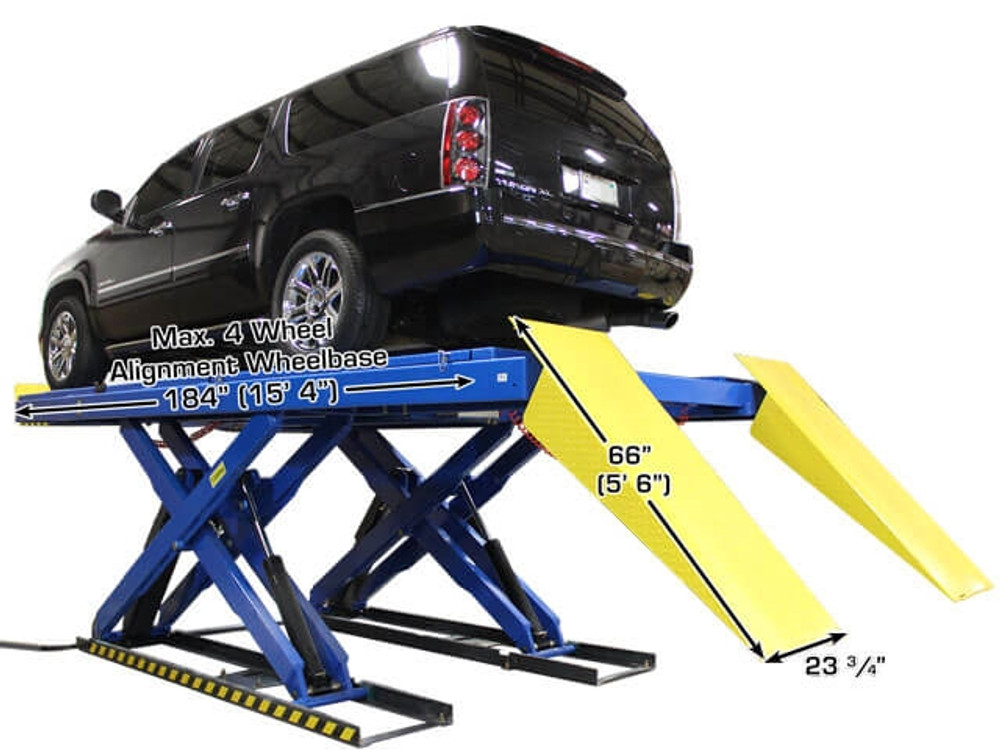

The Atlas® PX16A scissor alignment lift is the perfect choice for those service shops that need a space-saving, narrow-width alignment lift to accommodate the widest possible range of vehicles. This lift's extra-long slip plates allow for 4-wheel aligning of wheelbases from 96 inches all the way to 184 inches, and up to 204 inches with optional front extensions. That means you can confidently service compact sedans, SUVs, full-size trucks, and extended-wheelbase commercial vehicles on a single platform.

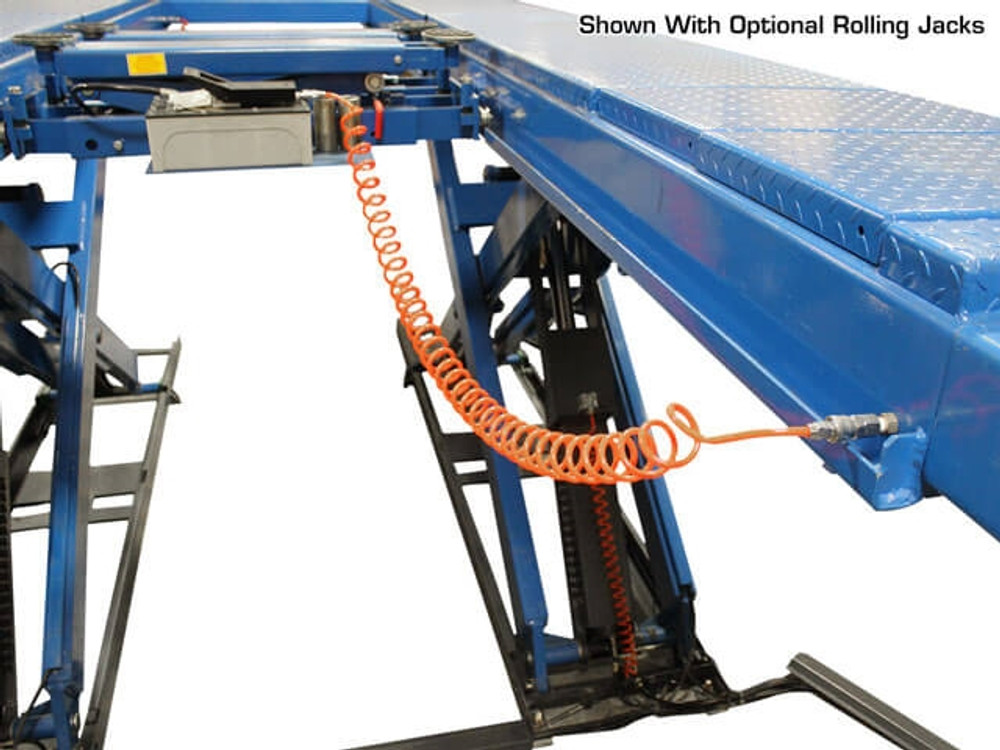

The PX16A includes a set of recessed turntables for precise wheel positioning and a Wheels Free System for accurate alignment work. The runway jack rail is specifically designed to accommodate optional rolling jacks, and the lift is equipped with a semi-enclosed air line kit routing system to provide air to rolling jacks and prevent shop air hoses from cluttering your floor. This keeps your workspace clean, organized, and safe.
With heavy-duty construction and a super-balanced design engineered for wheel alignment, the PX16A delivers very precise platform leveling accuracy. The lift can be surface mounted or flush mounted depending on your shop configuration. A mechanical safety lock with air-operated engagement and release ensures safe operation, and an emergency manual pump provides a safe lowering option in the event of power loss.

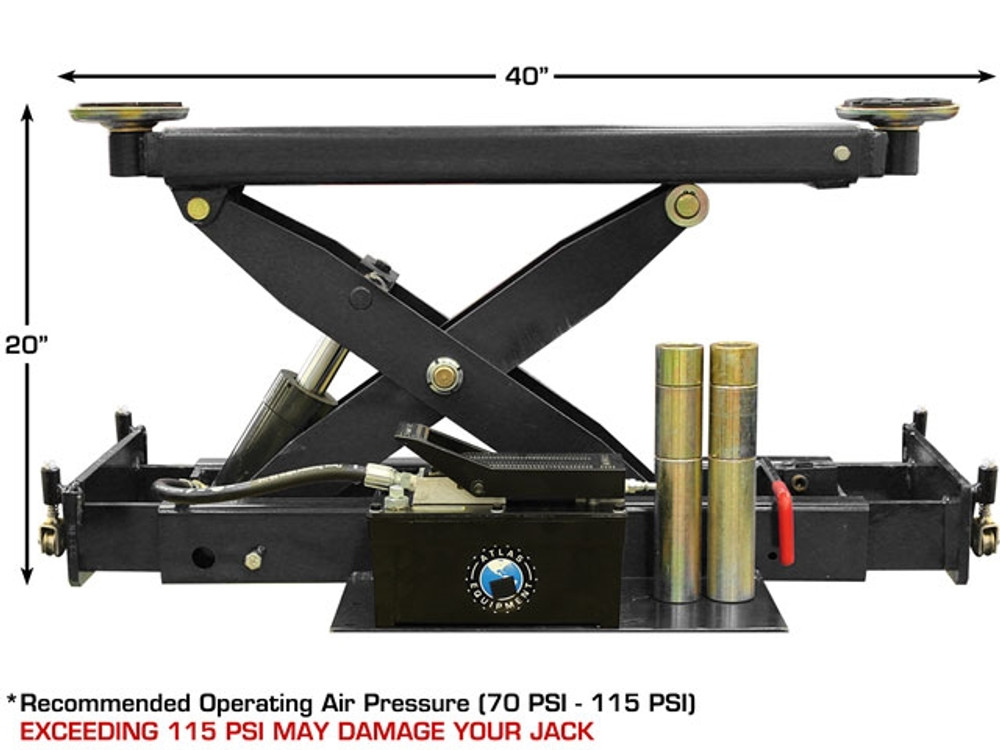

The Atlas® RJ8A air/hydraulic rolling jack is the perfect companion to the PX16A scissor lift. With an 8,000 lb. capacity, this rolling jack features telescoping arms that extend over the runways of the lift, allowing you to position the lift pads under the vehicle's lifting points with precision. The expandable rail supports adjust to fit between the runways of many different styles and brands of lifts, and the unique roller system allows the jack to glide smoothly under the entire length of the vehicle.
The RJ8A comes standard with a set of peg-style truck adapters (both 2.5" and 5" heights) that increase the lifting height of the lift pads, making it ideal for lifting pickup trucks and larger vehicles that sit higher than the average passenger car. The jack features two solid locking positions that act like jack stands once the vehicle is raised, eliminating hydraulic pressure from the lifting cylinder for added safety during service work. Its compact size with low profile, smooth rolling action, and powder-coated finish make it a durable, long-lasting addition to any professional shop.
IMPORTANT: The Atlas® RJ8A is designed and engineered to operate on "delivered" air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack. An external air supply is required and NOT INCLUDED with this rolling jack.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Note: The RJ8A supersedes part numbers ATTD-RJ8000BK & ATPK-RJ8BKNP-AH-KIT.
This is the perfect alignment lift for service departments that perform alignments on a variety of vehicles—from a Smart Car® all the way to an F-450 dual-wheel truck. The narrow width design maximizes your available shop space without sacrificing capacity or capability. The 4 HP 220-volt motor (requires a 30-amp breaker) provides reliable, consistent power, and the lift's lowered height of just 13 1/4 inches makes it easy to drive vehicles onto the platform.

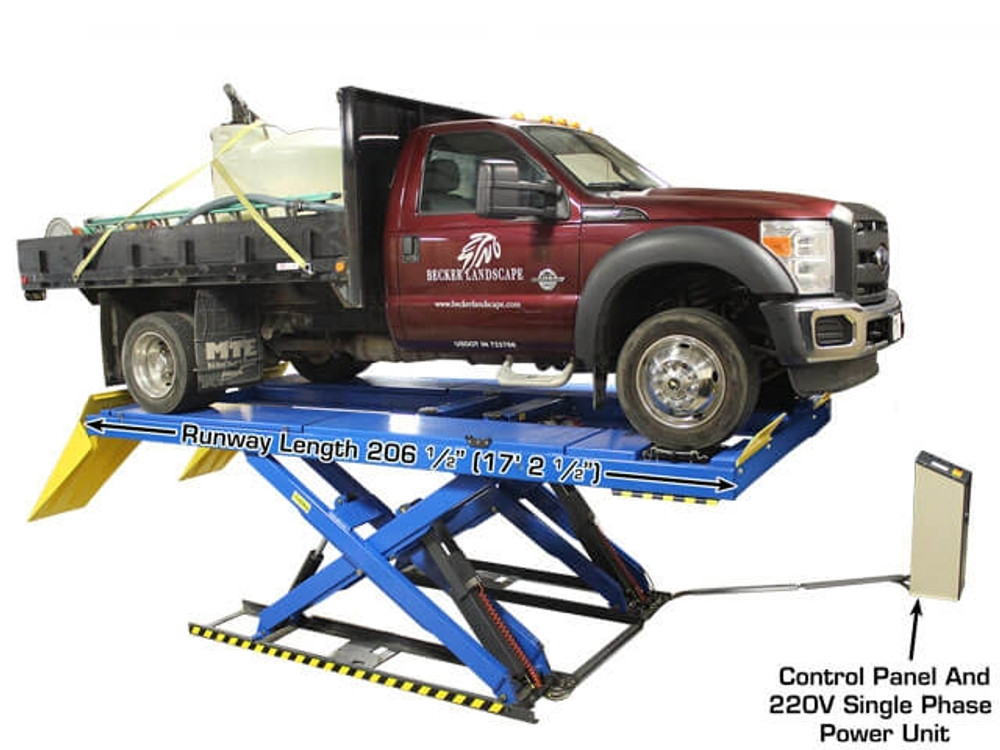

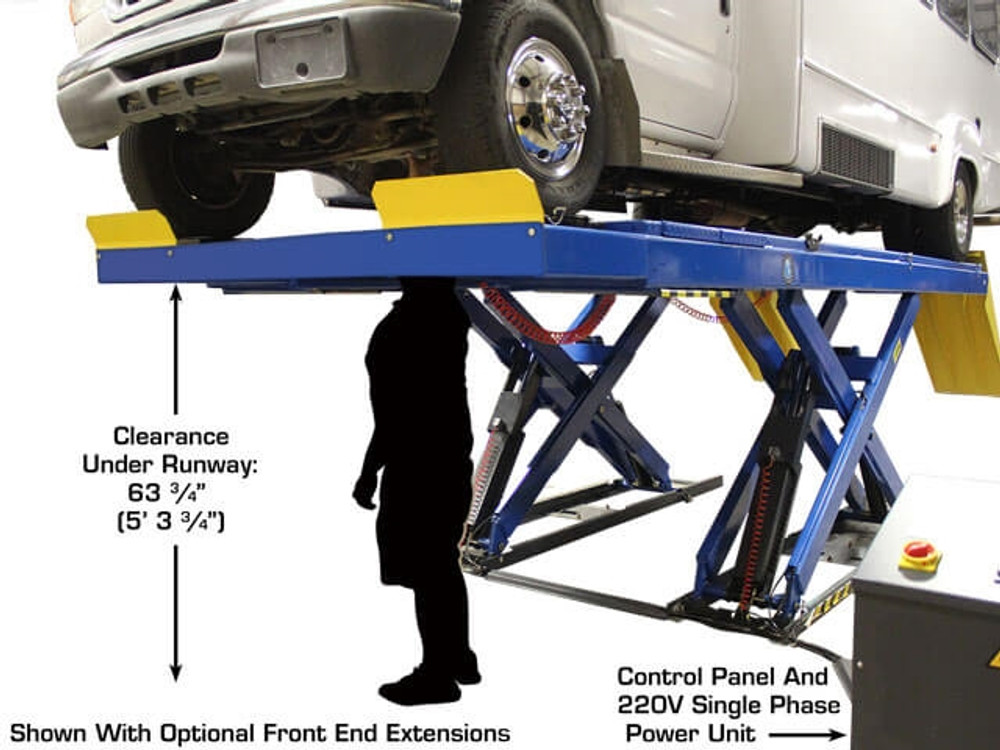

With an overall width of 94 inches, runway width of 23 3/4 inches, and an overall length of 271 inches with approach ramps (or 294 inches with extensions), the PX16A provides the reach and stability you need to confidently align and service a wide variety of vehicles. The lift ships in two boxes with dimensions of 198" x 53" x 29 1/2" and a total shipping weight of 5,500 lbs. The RJ8A rolling jack ships separately with a shipping weight of 390 lbs.
The RJ8A rolling jack has a maximum width of 56 1/2 inches, a minimum width of 36 inches, and a maximum lifting height with adapters of 29-5/8 inches. The arm holes and adapter pegs are 1.5 inches in size, and the jack operates on 70-115 PSI air pressure.
When you invest in the Atlas® PX16A Commercial Grade Alignment Scissor Lift Combo, you're investing in a complete alignment and service solution that will serve your shop for years to come. The precision engineering, heavy-duty construction, and versatile design make this combo the ideal choice for shops that demand the best. From compact cars to heavy-duty trucks, this system handles it all with ease, accuracy, and professional reliability.
