The Atlas® 414A 14,000 lb Alignment Lift Combo delivers a complete commercial-grade solution for professional alignment and service work. This combo package includes the Atlas® 414A four post alignment lift with built-in slip plates and turntables, plus two RJ-8000 8,000 lb rolling air/hydraulic jacks with truck adapters, giving you everything you need to perform precision wheel alignments and full-access wheel service on a wide range of vehicles. Engineered to commercial standards and built with features found on lifts costing thousands more, the Atlas® 414A is designed for shops that demand reliability, precision, and long-term durability. As a bonus, this combo package includes a FREE air line kit (a $300 value) to complete your setup.
Important: 4 Post Cylinder Bleeding Required After Installation
To ensure optimal performance and prevent air lock issues, cylinder bleeding must be performed immediately after installation. View Atlas 4 Post Cylinder Bleeding Procedure (PDF)
Why Choose the Atlas® 414A Alignment Lift Combo?
The Atlas® 414A has been manufactured to the same exacting specifications for many years, providing shops with a proven, dependable lift system that performs flawlessly at its rated capacity. This alignment lift incorporates many structural and cosmetic features typically reserved for lifts costing significantly more, making it an exceptional value for serious professionals.
Unlike many competitor lifts that rely on outdated chain lifting systems with exposed hydraulic cylinders (which are difficult to level and prone to causing door dings), the Atlas® 414A uses a modern high-strength cable system paired with an under-runway oversized hydraulic cylinder. This design keeps hydraulics protected beneath the runways and ensures smooth, level lifting every time. The lift is powered by a 220-volt single-phase power unit, offering reliable performance without the complexity of three-phase electrical requirements.
14,000 lb capacity – handles everything from passenger cars to light trucks
Built-in slip plates and alignment turntables – turntables can be positioned at multiple locations on the runways to accommodate a wide variety of wheelbases
Included runway covers – metal cover plates protect turntable cutouts when alignment functions aren't needed
Air-operated single point lock release – fast, convenient operation (external air supply required)
Lock ladder design with double lock safety system – provides maximum operator safety and confidence
Atlas® 414A Alignment Lift – Heavy Duty, Extra Tall, Extra Wide, Extra Long
The Atlas® 414A is designed and built to commercial-grade standards and will provide many years of reliable service. This alignment lift offers many exclusive features not found on competing lifts, making it ideal for busy alignment shops and full-service automotive facilities.
Each Atlas® 414A alignment lift includes a set of front turntables that can be positioned at different locations on the runway to fit a wide variety of wheelbases. The slip plates are built into the runways and sit level with the front turntables, providing smooth, accurate alignment measurements. When alignment work is not being performed, included metal cover plates cover the turntable cutouts so the vehicle rests on a solid, continuous runway surface.
With an impressive 80-inch (6' 8") lifting height, 21-foot 3-inch overall length with approach ramps, and 130 7/8-inch overall width, the 414A provides ample clearance for working underneath larger vehicles. The lift features steel approach ramps included, with optional drive-off ramps and runway extensions available separately for shops needing even more versatility.
The air-operated single point lock release system allows operators to quickly and easily disengage the lift's safety locks with the press of a button, streamlining workflow. The lift's lock ladder design with double lock safety system provides redundant protection, ensuring the vehicle remains safely elevated during service. A durable powder coat finish protects against shop wear and corrosion.
Mounting hardware is included with every lift, and the 414A comes ready to install with all necessary alignment slip plates and turntables. The Atlas® 414A supersedes the ATPK-414A-KIT.
Atlas® RJ-8000 Rolling Air/Hydraulic Center Jacks (2 Included)
The Atlas® RJ-8000 is a heavy-duty 8,000 lb capacity rolling jack designed specifically to work with the Atlas® 414A four post lift (as well as the Atlas® 412, 412A, 414, and PX16A lifts). This commercial-grade rolling jack allows you to lift and support the front or rear section of a vehicle, enabling full access for wheel and brake service while the vehicle is elevated on the four post lift.
Most commercial shops purchase two RJ-8000 jacks (included in this combo package) so the entire vehicle can be supported in the air at the same time, giving technicians complete access to all four wheels simultaneously. This dramatically increases productivity and allows for efficient tire rotation, brake service, and suspension work.
The RJ-8000 features telescoping arms that extend over the runways of the four post lift. Lift pads at the end of these arms can be precisely positioned under the vehicle's lifting points. The jack is equipped with expandable rail supports that adjust to fit many different brands of four post lifts, and a unique roller system allows the jack to glide smoothly under the entire length of the vehicle. Large, heavy-duty steel wheels make positioning the jack fast and effortless.
Each RJ-8000 includes a set of screw-up adapters (ranging from 1 3/4" to 4 1/2") along with shorter (3") and taller (6") adapters. These adapters increase the lifting height, allowing the jack to raise pickup trucks and larger vehicles that sit higher than average passenger cars. With both adapters in place, the RJ-8000 achieves a maximum lifting height of 30 inches.
The jack utilizes an Atlas® air/hydraulic pump that requires a compressed air supply (air compressor) to operate. The pump provides smooth, controlled lifting action. The scissor mechanism design ensures level lifting, keeping the vehicle stable throughout the lift cycle.
Important Operating Pressure Requirements
The Atlas® RJ-8000 is designed and engineered to operate on "delivered" air pressure between 70-115 PSI. Exceeding 115 PSI may damage your jack. For more information on recommended operating air pressure, view the RJ-8000 Operating Air Pressure document (PDF).
The RJ-8000 features two solid locking positions that engage when the vehicle is suspended above the runways. When the locks are engaged, the pressure on the hydraulic system from the vehicle's weight is eliminated—much like a pair of jack stands after you lift a vehicle with a service jack. This provides critical safety redundancy and allows technicians to work confidently beneath the vehicle.
With its compact size, low profile design (10-inch minimum lifting height), and smooth rolling action, the RJ-8000 is easy to maneuver and position. The durable powder-coated finish stands up to daily shop use. Each jack includes truck adapters and has a shipping weight of 390 lbs. The Atlas® RJ-8000 supersedes the ATPK-RJ8BKNP-AH-KIT.
Key Features at a Glance
14,000 lb capacity alignment lift with 80-inch lifting height – accommodates a wide range of passenger cars and light trucks
Two RJ-8000 8,000 lb rolling jacks included – allows simultaneous front and rear wheel access for maximum efficiency
Built-in slip plates and alignment turntables with multiple positioning options and included runway covers
Modern cable lifting system with under-runway hydraulic cylinder – superior to old-style chain systems; eliminates exposed cylinders
Air-operated single point lock release on lift; two safety lock positions on each rolling jack – maximum operator safety and convenience
Commercial-grade construction with powder coat finish – built to withstand daily professional use and provide years of reliable service

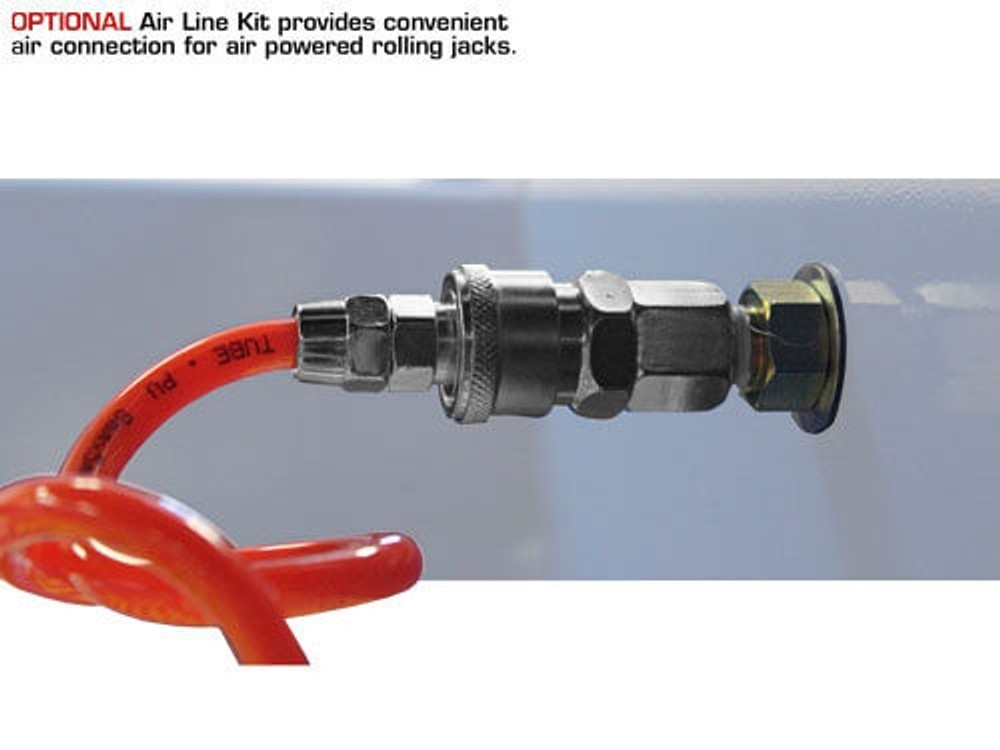

FREE air line kit included (a $300 value) with this combo package – everything you need to connect and operate your equipment
