Autel MA800UPG MA800 Mobile ADAS Frame Upgrade Package
The Autel MA800UPG MA800 Mobile ADAS Frame Upgrade Package is designed specifically for shops and technicians that already own the Autel MA600 ADAS calibration system and want to upgrade to the MA800 mobile calibration platform. The package adds the MA800's portable calibration frame and advanced laser-guided positioning equipment while maintaining compatibility with existing MA600 targets and calibrators.
Designed for efficient ADAS calibration setup, the MA800 replaces traditional mechanical positioning procedures with laser-guided vehicle centerline identification and target positioning. Independent pitch, roll, and yaw adjustments provide precise frame alignment, while measurements can be transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances and validated reporting.
Upgrade Your Existing MA600 to the MA800 Platform
Designed for MA600 Owners: Provides an upgrade path for shops already using the Autel MA600 ADAS calibration system.
MA600 Target Compatibility: Compatible with existing MA600 targets and calibrators, allowing shops to continue using their current calibration components.
Mobile MA800 Calibration Frame: Frame breaks down into four pieces for convenient transportation and storage.
Laser-Guided Positioning: Replaces mechanical positioning with laser-assisted vehicle centerline and target positioning.
Independent Pitch, Roll & Yaw Adjustment: Allows precise adjustment of the calibration frame during setup.
Tablet-Based Measurement Verification: Setup measurements can be transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances.
Validated Reporting: Supports documented calibration setup and reporting when used with compatible Autel diagnostic equipment and software.
Comprehensive Vehicle Coverage: Designed to support a broad range of ADAS calibration applications when equipped with the appropriate targets, calibrators, tablet, and software.
One-Year Limited Warranty: MA800UPG is backed by a one-year limited warranty.

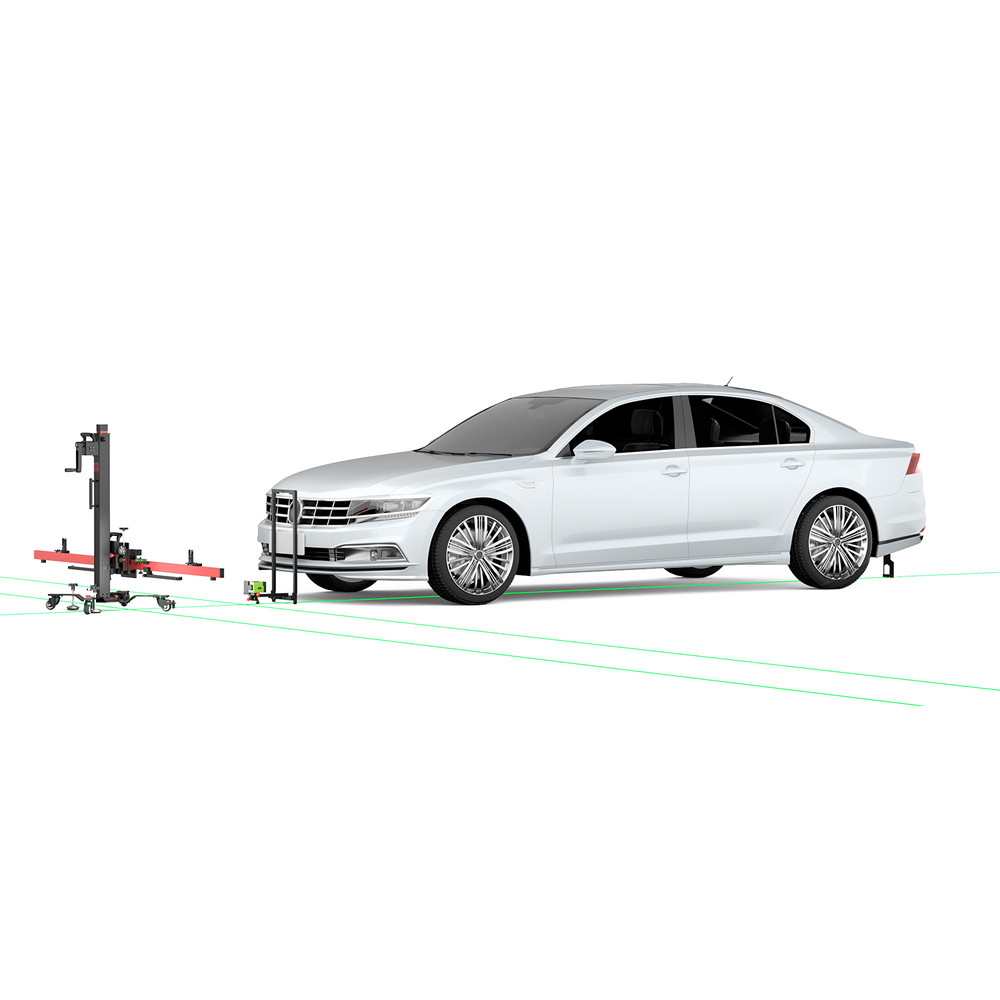

Laser-Guided ADAS Calibration Setup
The Autel MA800 uses laser-guided positioning to help technicians establish the vehicle centerline and properly position the calibration frame and targets. This approach is designed to improve setup efficiency and accuracy compared with traditional mechanical positioning procedures.
The included laser equipment gives technicians the tools needed to establish critical positioning references during the calibration setup process, helping prepare the vehicle and frame for OE-specified ADAS calibration procedures.
Independent Pitch, Roll & Yaw Adjustment
Precise frame positioning is critical during ADAS calibration. The MA800 provides independent pitch, roll, and yaw adjustments, allowing technicians to accurately position the calibration frame relative to the vehicle and calibration environment.
Setup measurements can then be transmitted to a compatible Autel MaxiSYS tablet, allowing the technician to verify positioning against applicable OE-specified tolerances before proceeding with the calibration.

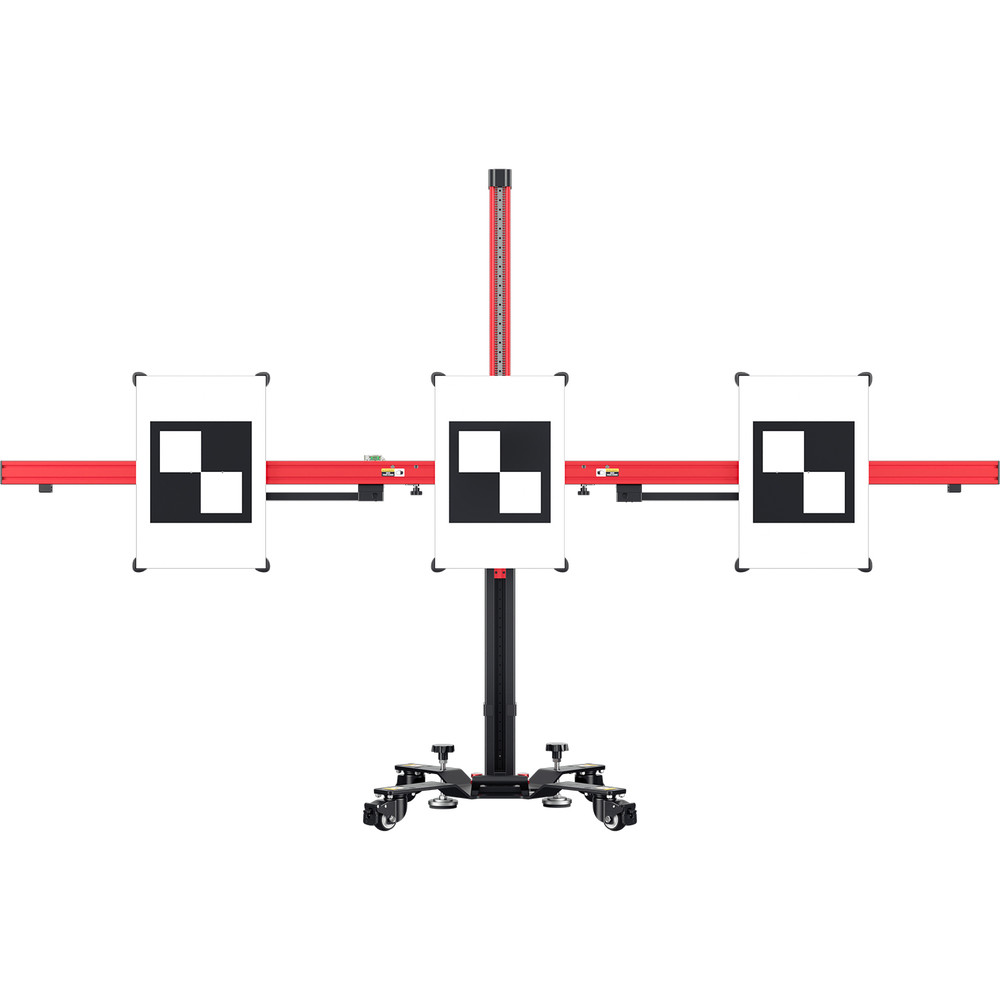

Portable Four-Piece MA800 Calibration Frame
The MA800 calibration frame is designed with mobility in mind. The frame breaks down into four pieces, making it easier to transport between locations and requiring less space for storage when compared with a permanently assembled calibration structure.
This portable configuration makes the MA800 particularly useful for collision centers, automotive repair facilities, glass replacement operations, mobile ADAS technicians, and multi-location service organizations that need greater flexibility from their calibration equipment.
MA800UPG Upgrade Package Includes
MA800 Mobile Calibration Frame
Tablet Holder
Left Positioning Laser Unit
Right Positioning Laser Unit
Alignment Stand
Laser Measure Unit
Two-Line Laser for Vehicle Centerline Identification
Second Two-Line Laser
Laser Plate
Laser-Assisted Reflector
2 Rechargeable Battery Packs
Power Adapter
Compatible with Existing MA600 Targets & Calibrators
A major advantage of the MA800UPG is its compatibility with existing MA600 targets and calibrators. Shops that have already invested in an MA600 system can upgrade the positioning and frame components without replacing their entire collection of compatible ADAS calibration targets.
This makes the MA800UPG a practical upgrade for established Autel ADAS users looking to improve portability, positioning efficiency, and calibration setup capabilities.
Ideal ADAS Calibration Applications
Automotive Repair Shops
Collision Repair Centers
Auto Glass Replacement Facilities
Dealership Service Departments
ADAS Calibration Centers
Mobile ADAS Calibration Technicians
Multi-Location Automotive Service Operations
Existing Autel MA600 Owners
Upgrade to the Autel MA800 Mobile ADAS Calibration Platform
The Autel MA800UPG MA800 Mobile ADAS Frame Upgrade Package gives existing MA600 owners a streamlined way to move to Autel's MA800 mobile calibration platform while continuing to use compatible MA600 targets and calibrators. With a portable four-piece frame, laser-guided centerline and target positioning, independent pitch, roll, and yaw adjustments, tablet-based measurement verification, and validated reporting capabilities, the MA800UPG is designed to improve the efficiency and precision of professional ADAS calibration setup.
System Requirement: A compatible MaxiSYS tablet with ADAS calibration software is required and is not included unless specifically stated. Existing MA600 targets and calibrators are also not included with this upgrade package unless otherwise specified. Always verify current Autel vehicle coverage, target requirements, tablet compatibility, software requirements, and OE calibration procedures before performing an ADAS calibration.
Check Out the MA800 Mobile ADAS Calibration System
Looking for full specifications and features? Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
