The Autel MA800LDW MA800 Expanded LDW Calibration Package is a comprehensive front camera calibration solution designed for professional ADAS service on an extensive range of equipped vehicles. The package combines the portable MA800 mobile calibration frame, advanced laser-guided positioning equipment, an expanded selection of Lane Departure Warning (LDW) calibration targets, and an ADAS calibration software upgrade card for a compatible MaxiSYS tablet.
Designed to improve calibration setup efficiency and accuracy, the MA800 uses laser-guided vehicle centerline and target positioning instead of traditional mechanical positioning methods. Independent pitch, roll, and yaw adjustments allow technicians to precisely align the calibration frame, while setup measurements can be transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances and validated reporting.
Expanded MA800 LDW Calibration Package
Expanded LDW Calibration Coverage: Includes a broad selection of Lane Departure Warning targets for front camera calibration on supported ADAS-equipped vehicles.
MA800 Mobile Calibration Frame: Four-piece modular frame breaks down for convenient transportation and storage.
Laser-Guided Positioning: Uses laser technology for vehicle centerline identification and target positioning to improve setup efficiency and accuracy.
Independent Pitch, Roll & Yaw Adjustment: Allows precise calibration frame positioning relative to the vehicle.
OE-Tolerance Verification: Setup measurements can be transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances.
Validated Reporting: Supports documentation and reporting of the calibration setup when used with compatible Autel equipment and software.
ADAS Calibration Software Included: Includes an ADAS calibration software upgrade card for a compatible MaxiSYS tablet.
12 Months of Calibration Coverage Updates: The included software upgrade provides 12 months of calibration coverage updates.
Target Flight Case Included: Provides convenient storage and transportation for the included small calibration targets.
One-Year Limited Warranty: Package hardware is covered by a one-year limited warranty.

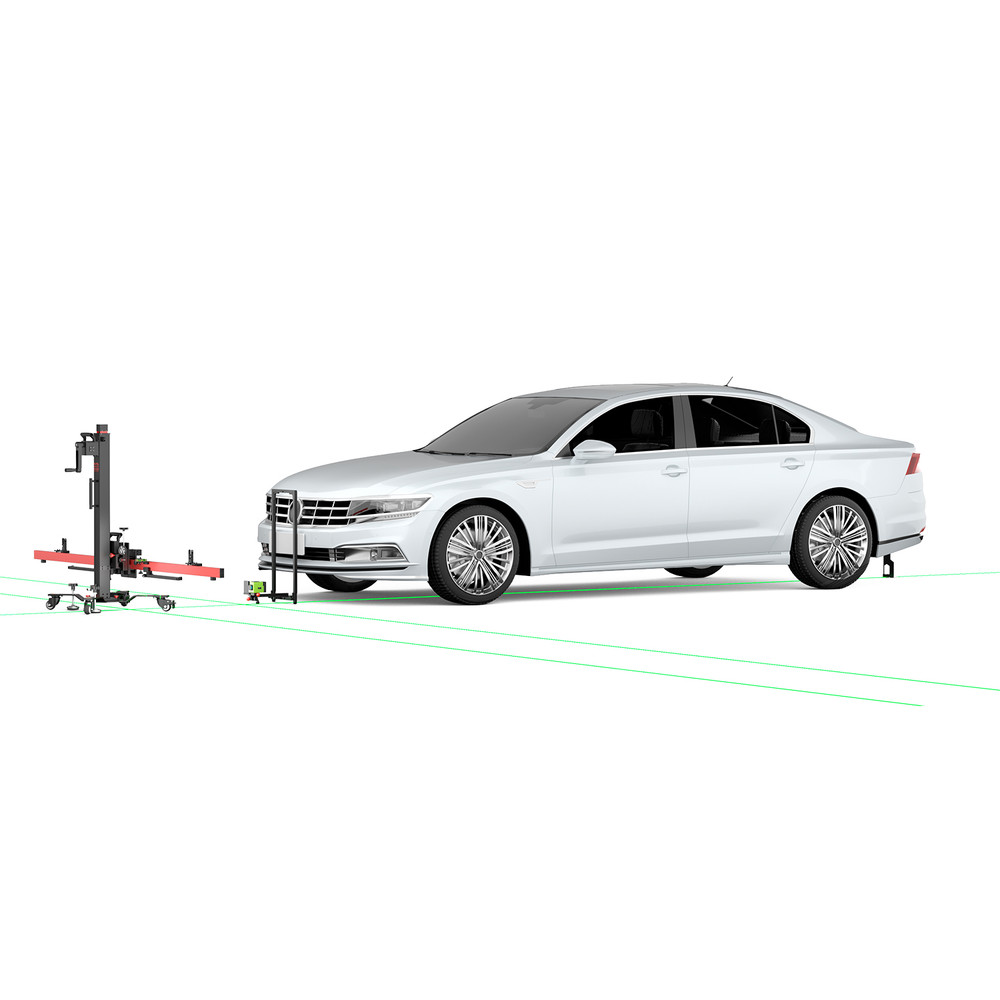

Laser-Guided Vehicle & Target Positioning
The Autel MA800 uses laser-guided positioning to help technicians establish the vehicle centerline and correctly position the calibration frame and required targets. This system is designed to streamline the setup process while helping technicians achieve the precise positioning required for supported static front camera calibrations.
By replacing traditional mechanical positioning with laser-assisted measurements, the MA800 provides a more efficient workflow for establishing critical vehicle-to-frame and target positioning references.
Independent Pitch, Roll & Yaw Adjustment
Accurate ADAS calibration requires precise positioning of the calibration equipment. The MA800 provides independent pitch, roll, and yaw adjustments, allowing technicians to accurately orient the frame relative to the vehicle and calibration environment.
Setup measurements can then be transmitted to a compatible Autel MaxiSYS tablet for verification against applicable OE-specified tolerances before the calibration procedure begins.
Expanded Lane Departure Warning Target Coverage
The MA800LDW package includes an expanded collection of Lane Departure Warning calibration targets for front camera calibration on supported vehicles from the following manufacturers:
Honda & Acura
Hyundai & Kia
Mazda
Mercedes-Benz
Mitsubishi
Nissan & Infiniti
Subaru
Toyota & Lexus
Volkswagen, Audi & Porsche
Alfa Romeo
A target flight case is also included to help protect, organize, store, and transport the smaller calibration targets.
ADAS Calibration Software with 12 Months of Updates
The included ADAS calibration software upgrade card adds supported ADAS calibration functionality to a compatible MaxiSYS tablet. The software package includes 12 months of calibration coverage updates, helping technicians maintain access to current supported calibration applications during the included update period.
Portable Four-Piece MA800 Calibration Frame
The MA800 mobile calibration frame is designed for portability and efficient storage. The frame breaks down into four pieces, making it easier to transport between service bays or locations and reducing the storage space required when the system is not in use.
This portable configuration makes the MA800LDW well suited for collision repair facilities, auto glass operations, dealerships, automotive repair shops, dedicated ADAS calibration centers, and mobile or multi-location calibration services.
MA800LDW Package Includes
MA800 Mobile Calibration Frame
Tablet Holder
Left Positioning Laser Unit
Right Positioning Laser Unit

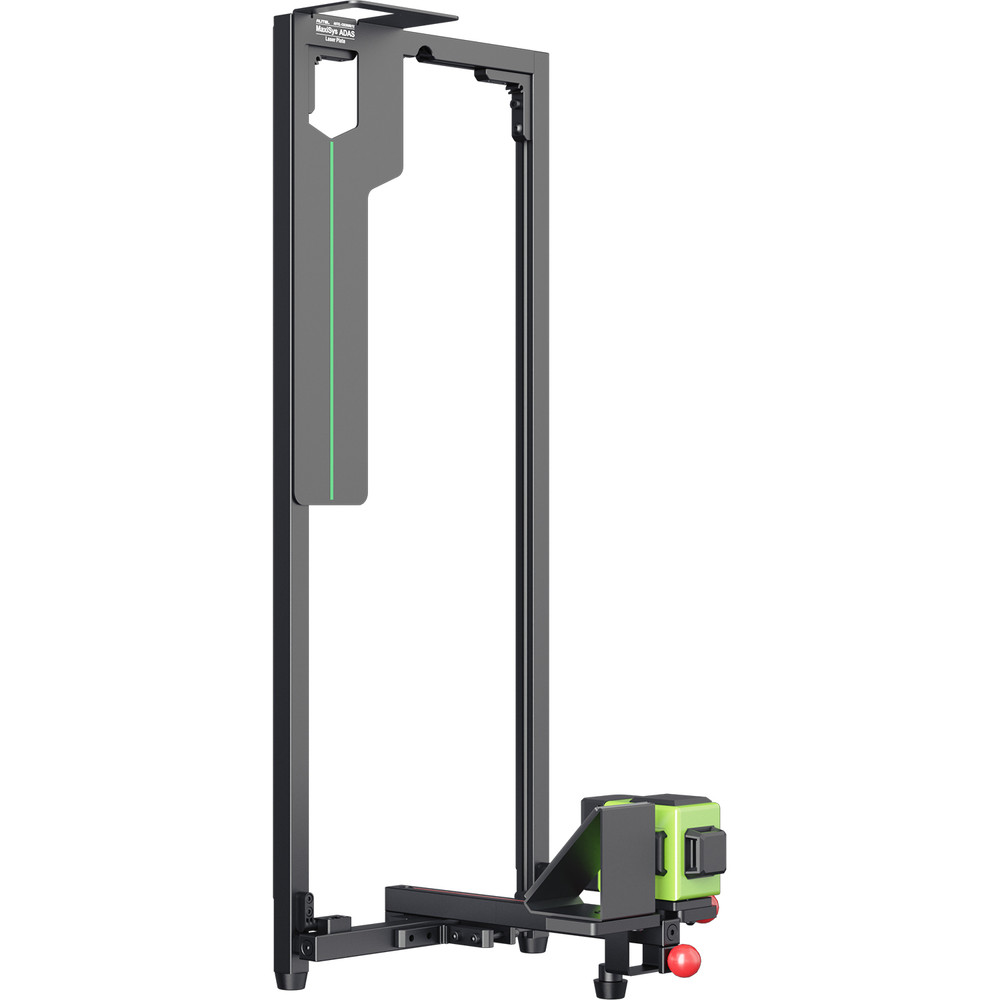

Alignment Stand
Laser Measure Unit
Two-Line Laser for Vehicle Centerline Identification
Second Two-Line Laser
Laser Plate
Laser-Assisted Reflector
2 Rechargeable Battery Packs
Power Adapter
ADAS Calibration Software Upgrade Card
12 Months of Calibration Coverage Updates
Expanded LDW Calibration Target Package
Target Flight Case for Small Targets
Ideal ADAS Calibration Applications
ADAS Calibration Centers
Collision Repair Facilities
Auto Glass Replacement Facilities
Automotive Repair Shops
Dealership Service Departments
Front Camera & LDW Calibration
Mobile ADAS Calibration Services
Multi-Location Automotive Service Operations
Expanded Front Camera Calibration with the Autel MA800
The Autel MA800LDW MA800 Expanded LDW Calibration Package provides professional shops with a versatile solution for expanding front camera and Lane Departure Warning calibration capabilities. Combining the portable MA800 frame, laser-guided positioning, independent pitch, roll, and yaw adjustment, OE-tolerance setup verification, expanded LDW target coverage, and ADAS calibration software, the MA800LDW provides a strong foundation for professional static ADAS calibration service.
Tablet Requirement: A compatible MaxiSYS ADAS-capable tablet is required and is not included with the MA800LDW package.
Warranty & Software: Package hardware is covered by a one-year limited warranty. The included ADAS calibration software upgrade card provides 12 months of calibration coverage updates.
Compatibility Note: ADAS calibration procedures, target requirements, and vehicle coverage vary by year, make, model, and installed ADAS system. Always verify current Autel vehicle coverage, tablet compatibility, software requirements, required targets, and applicable OE procedures before performing an ADAS calibration.
