Autel MA800AST MA800 All Systems Calibration Package w/MS909S2 Tablet
The Autel MA800AST MA800 All Systems Calibration Package combines the MA800 mobile ADAS calibration system, MaxiSYS MS909S2 professional diagnostic tablet, ADAS calibration software, and an expanded selection of targets, calibrators, and equipment to provide calibration coverage across all supported ADAS systems. Designed for professional ADAS calibration centers, collision repair facilities, dealerships, auto glass operations, and automotive repair shops, the MA800AST provides a comprehensive solution for shops looking to perform a wide range of static ADAS calibration procedures.
The MA800 uses laser-guided vehicle centerline and target positioning to improve setup efficiency and accuracy. Independent pitch, roll, and yaw adjustments allow precise frame positioning, while setup measurements are transmitted directly to the included MS909S2 tablet for verification against OE-specified tolerances and validated reporting.
Complete MA800 All Systems ADAS Calibration Package
All Systems Calibration Package: Includes an expanded collection of targets, calibrators, and equipment for calibration across all supported ADAS systems.
MA800 Mobile Calibration Frame: Four-piece modular frame breaks down for convenient transportation and storage.
MaxiSYS MS909S2 Tablet Included: Professional diagnostic tablet integrates with the MA800 calibration workflow.
Laser-Guided Positioning: Uses laser technology for vehicle centerline identification and target positioning.
Independent Pitch, Roll & Yaw Adjustment: Enables precise calibration frame positioning relative to the vehicle.
OE-Tolerance Verification: Setup measurements are transmitted to the tablet for verification against OE-specified tolerances.
Validated Reporting: Supports documentation and reporting of the calibration setup and procedure.
Expanded LDW Target Coverage: Includes front camera calibration targets for numerous major vehicle manufacturers.
Additional ADAS System Coverage: Includes equipment supporting applicable AVM, rear camera, LaneWatch, ACC, BSD, night vision, and LiDAR calibration procedures.
ADAS Calibration Software Included: Includes an ADAS calibration software upgrade card.
12 Months of Calibration Coverage Updates: Included ADAS software provides 12 months of calibration coverage updates.
Target Flight Case Included: Provides organized storage and transportation for smaller calibration targets.
Laser-Guided Vehicle & Target Positioning
The Autel MA800 uses laser-guided positioning to help technicians establish the vehicle centerline and properly position the calibration frame and required targets. This approach replaces traditional mechanical positioning methods with laser-assisted measurements designed to streamline the ADAS calibration setup process.
Setup measurements are transmitted to the included MaxiSYS MS909S2 tablet, allowing technicians to verify positioning against applicable OE-specified tolerances before beginning the calibration. This verification also supports validated reporting and documentation of the calibration setup.
Independent Pitch, Roll & Yaw Adjustment
Accurate calibration equipment positioning is critical when performing static ADAS procedures. The MA800 provides independent pitch, roll, and yaw adjustments, allowing technicians to precisely orient the calibration frame relative to the vehicle and calibration environment.
Combined with laser-guided positioning and tablet-based measurement verification, these adjustments help technicians establish and confirm the calibration geometry required by applicable OE procedures.

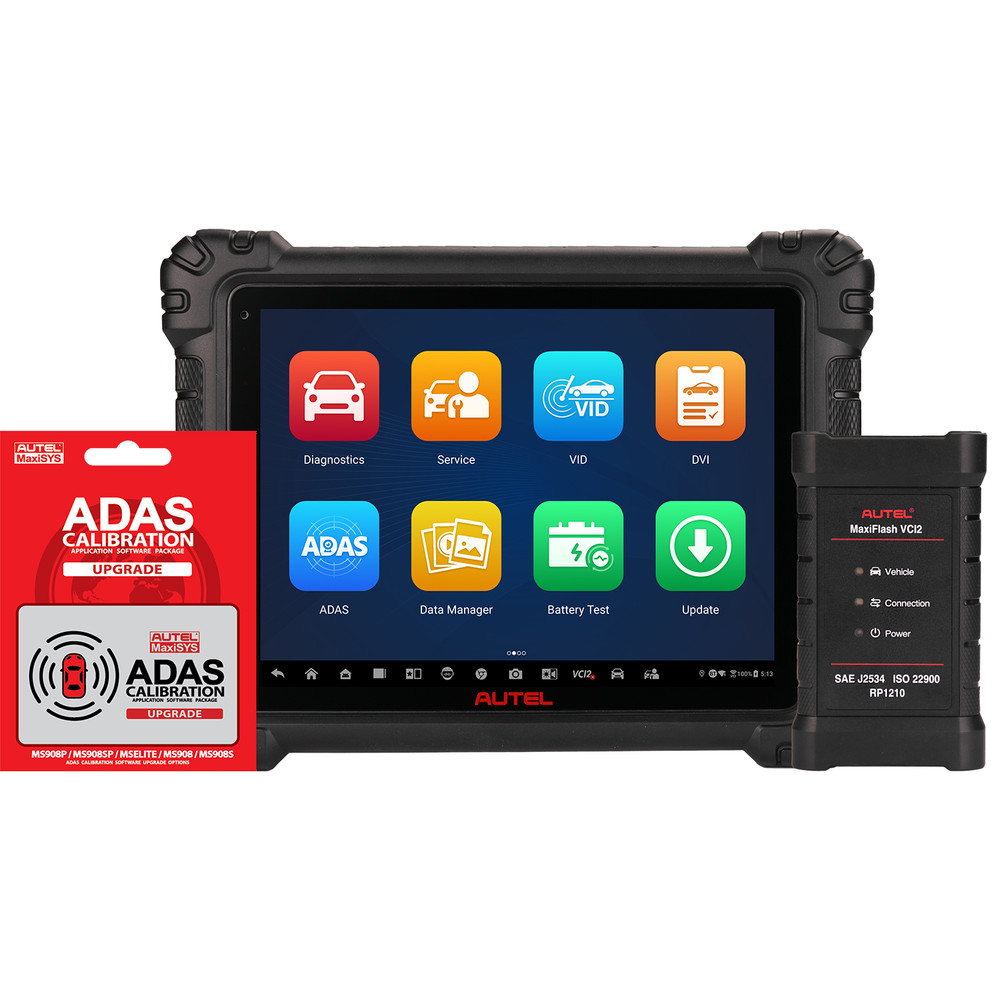

MaxiSYS MS909S2 Professional Diagnostic Tablet Included
The MA800AST includes the Autel MaxiSYS MS909S2 diagnostic tablet, providing the diagnostic platform used with the MA800 calibration system. The tablet receives setup measurements from the calibration equipment for verification and works with the included ADAS calibration software to support applicable calibration procedures.
The MS909S2 includes one year of software updates and one-year limited warranty coverage, providing shops with a complete diagnostic and ADAS calibration platform in one package.
Expanded Lane Departure Warning Target Coverage
The MA800AST includes an expanded selection of Lane Departure Warning and front camera calibration targets for supported vehicles from the following manufacturers:
Honda & Acura
Hyundai & Kia
Mazda
Mercedes-Benz
Mitsubishi
Nissan & Infiniti
Subaru
Toyota & Lexus
Volkswagen, Audi & Porsche
Alfa Romeo
A target flight case is included to help protect, organize, store, and transport the smaller calibration targets.
All Systems ADAS Calibration Coverage
In addition to front camera and LDW calibration equipment, the MA800AST includes additional targets, calibrators, and equipment for servicing other supported ADAS technologies. This expanded package allows shops to perform a wider range of ADAS calibration procedures from the MA800 platform.
Lane Departure Warning (LDW) & Front Camera Calibration
Around View Monitoring (AVM) Calibration
Rear Camera Calibration
Honda LaneWatch Calibration
Adaptive Cruise Control (ACC) Calibration
Blind Spot Detection (BSD) Calibration
Night Vision Calibration
LiDAR Calibration
Portable Four-Piece MA800 Calibration Frame
The MA800 calibration frame breaks down into four pieces for convenient transportation and storage. This modular design gives shops greater flexibility when moving the system between service bays or facilities and reduces the storage space required when the calibration frame is not in use.
The portable design makes the MA800AST well suited for dedicated ADAS centers, collision repair facilities, dealerships, auto glass operations, multi-location service organizations, and mobile calibration businesses.
ADAS Calibration Software with 12 Months of Updates
The included ADAS calibration software upgrade card adds supported calibration coverage to the MS909S2 tablet. The software package includes 12 months of calibration coverage updates, helping technicians maintain access to current supported calibration applications during the included update period.
MA800AST Package Includes
MA800 Mobile Calibration Frame
Tablet Holder
Left Positioning Laser Unit
Right Positioning Laser Unit
Alignment Stand
Laser Measure Unit
Two-Line Laser for Vehicle Centerline Identification
Second Two-Line Laser
Laser Plate
Laser-Assisted Reflector
2 Rechargeable Battery Packs
Power Adapter
MaxiSYS MS909S2 Professional Diagnostic Tablet
Expanded LDW Calibration Target Package
AVM Calibration Equipment
Rear Camera Calibration Equipment
Honda LaneWatch Calibration Equipment
ACC Calibration Equipment
BSD Calibration Equipment
Night Vision Calibration Equipment
LiDAR Calibration Equipment
Target Flight Case for Small Targets
ADAS Calibration Software Upgrade Card
12 Months of Calibration Coverage Updates
Ideal ADAS Calibration Applications
Dedicated ADAS Calibration Centers
Collision Repair Facilities
Automotive Repair Shops
Auto Glass Replacement Facilities
Dealership Service Departments
Diagnostic & Calibration Specialists
Mobile ADAS Calibration Services
Multi-Location Automotive Service Operations
Complete Autel MA800 All Systems Calibration Solution with MS909S2
The Autel MA800AST MA800 All Systems Calibration Package with MS909S2 Tablet provides professional shops with a comprehensive platform for expanding ADAS calibration services. Combining the portable MA800 frame, laser-guided positioning, independent pitch, roll, and yaw adjustment, OE-tolerance verification, professional MS909S2 diagnostic tablet, expanded LDW target package, and equipment supporting AVM, rear camera, LaneWatch, ACC, BSD, night vision, and LiDAR calibration, the MA800AST is designed to support a broad range of professional ADAS calibration procedures.
Warranty & Software: MA800AST hardware is covered by a one-year limited warranty. The included MaxiSYS MS909S2 tablet includes one year of software updates and one-year limited warranty coverage. The ADAS calibration software upgrade includes 12 months of calibration coverage updates.
Compatibility Note: ADAS calibration procedures, targets, calibrators, diagnostic functions, and vehicle coverage vary by year, make, model, and installed ADAS system. Always verify current Autel coverage and follow the applicable OE calibration procedures before performing a calibration.
