Important: 4-Post Cylinder Bleeding Procedure
To view the Atlas 4-Post Cylinder Bleeding Procedure click here.
This procedure must be performed immediately after installation to ensure optimal lift performance.
The Atlas® PRO14KCF-EXT Extra Long 4-Post Lift is a heavy-duty commercial vehicle lift designed for professional automotive repair shops, service centers, dealerships, and fleet maintenance facilities. With a 14,000 lb. lifting capacity and extra-long runways, this commercial 4-post lift provides the additional length needed to accommodate longer vehicles while delivering the durability and versatility required for everyday shop use.
The PRO14KCF-EXT incorporates structural and convenience features commonly associated with more expensive commercial lifts. Its runways are two feet longer than the standard configuration, making it an excellent choice for shops servicing long-wheelbase trucks, vans, and other extended-length vehicles within the lift's approved capacity and dimensional requirements.

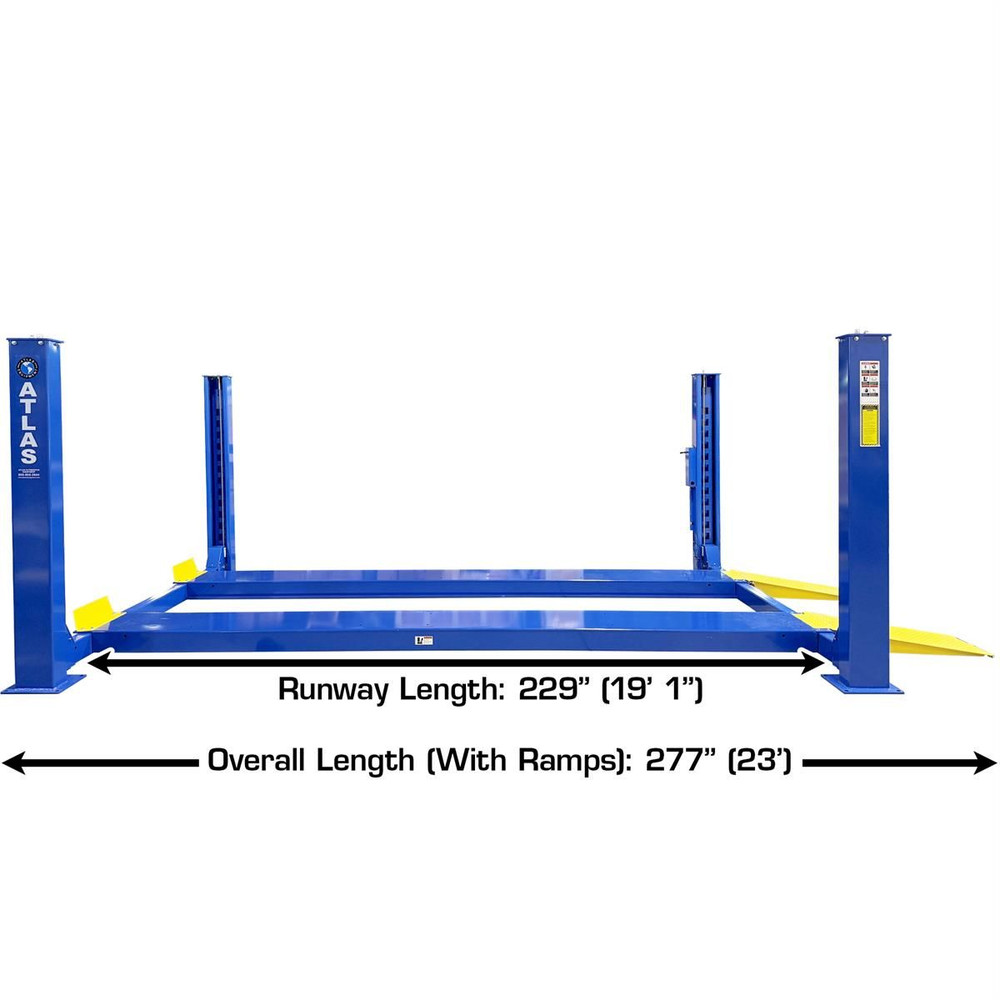

One of the key advantages of the Atlas® PRO14KCF-EXT is its extended runway configuration. The runways provide an additional two feet of length compared with the standard configuration, giving professional shops greater flexibility when servicing longer vehicles.
This extra runway length makes the PRO14KCF-EXT particularly useful for facilities that regularly work with long-wheelbase pickups, commercial vans, fleet vehicles, and other extended-length vehicles. Vehicle weight, wheelbase, dimensions, and weight distribution should always be verified against the manufacturer's current lift specifications before use.

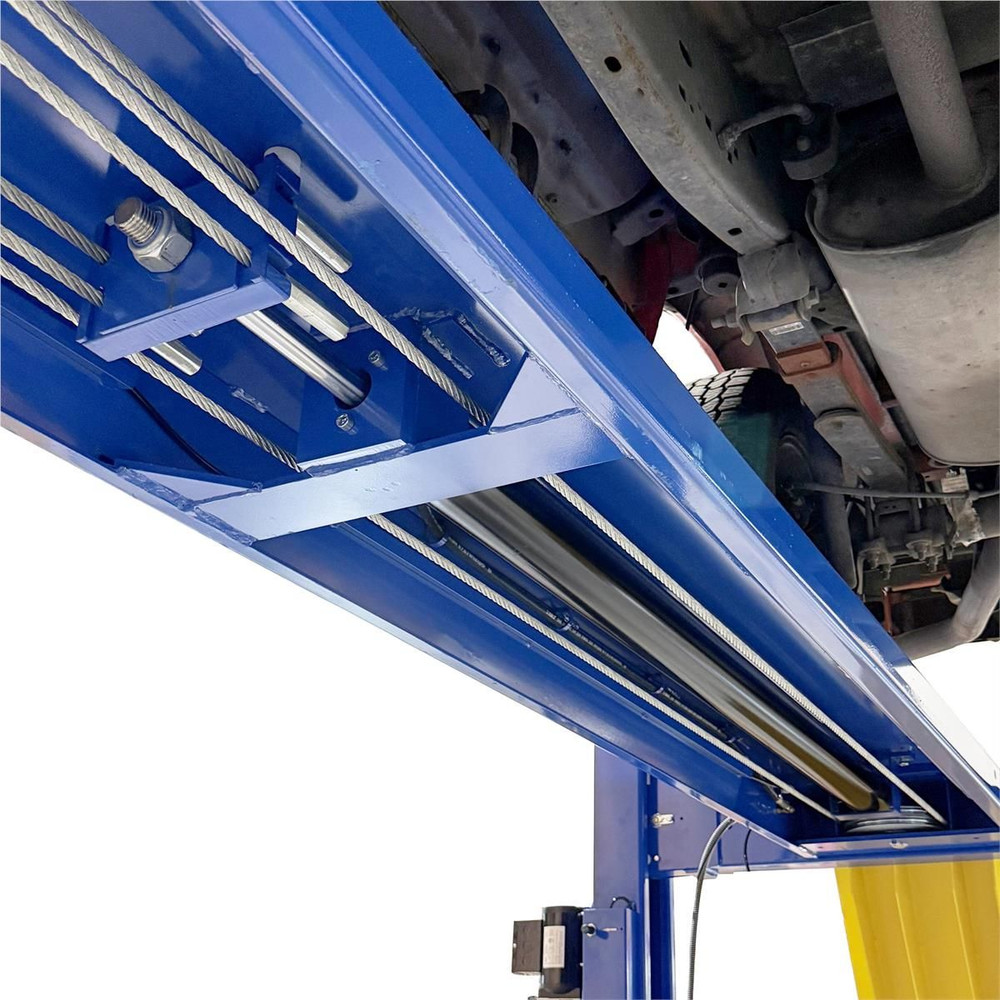

The PRO14KCF-EXT utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder located beneath the runway. This configuration keeps the hydraulic cylinder away from the sides of the vehicle while providing smooth lifting and lowering operation.

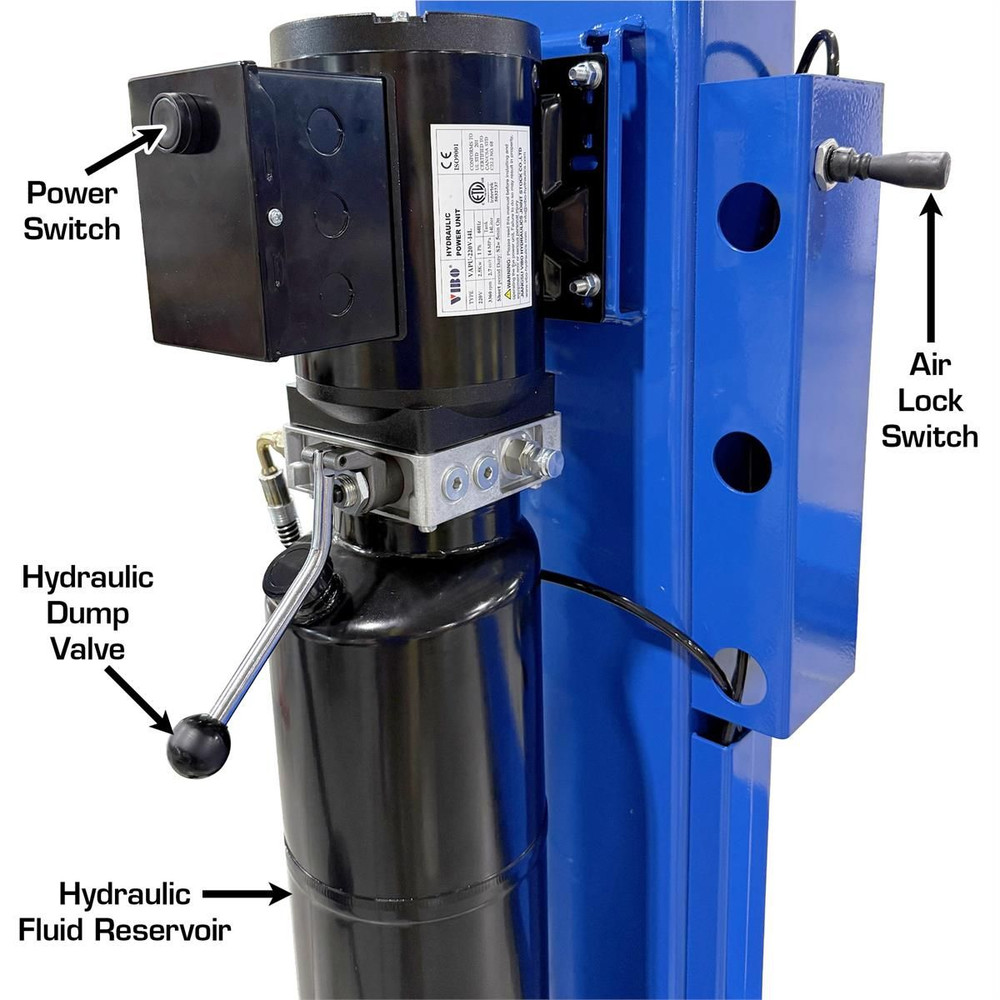

The system is powered by a 220-volt, single-phase power unit, making the lift well suited for professional automotive service environments equipped with the appropriate electrical service.
For shops looking to expand into alignment service, the Atlas® PRO14KCF-EXT comes pre-drilled to accept an optional alignment kit. The compatible ALI KIT includes the components needed to configure the lift for alignment applications, including slip plates, spacers, ramps, and turntables.
Alignment kit is sold separately.
Tracks positioned between the runways allow compatible rolling bridge jacks to travel along the lift. Adding a rolling jack, such as the Atlas® RJ8000BK, allows technicians to raise the vehicle from the runways for wheels-free service such as tire, brake, suspension, and related maintenance.
Rolling bridge jacks are sold separately.
The Atlas® PRO14KCF-EXT Extra Long 4-Post Lift combines a 14,000 lb. capacity, extended runways, high-strength cable lifting system, under-runway hydraulic cylinder, alignment-ready design, and rolling jack compatibility in one versatile commercial lift. For professional shops that service everything from standard passenger vehicles to longer trucks, vans, and fleet vehicles, the PRO14KCF-EXT provides the flexibility needed for a wide range of automotive service applications.
Installation Note: Proper installation requires verification of concrete, electrical, ceiling height, vehicle dimensions, clearances, and all other site requirements against the manufacturer's current specifications. Alignment components, rolling bridge jacks, and other optional accessories are sold separately unless specifically stated otherwise.
California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
Warranty Information
To View Atlas® Automotive Equipment PRO14KCF-EXT Warranty Click Here
