The Atlas® PV Series delivers exceptional value for shops and technicians seeking a heavy-duty, professional-grade two-post lift without the premium price tag. Manufactured and proven in the field for over a decade, the PV Series has earned a reputation for outstanding durability and reliability, with thousands of units in service across North America. Built with rugged construction and dependable performance in mind, these lifts are often described by customers as "bulletproof," making them a trusted choice for demanding automotive service environments..
The Atlas® PV12PX is a heavy-duty commercial-grade two-post lift engineered to service everything from passenger vehicles to long wheelbase trucks and vans. With 123" between the columns and an impressive 109" drive-through clearance, it easily accommodates wide vehicles, oversized mirrors, and larger commercial applications. The lift features a low pad height for sports cars and passenger vehicles, while the included peg-style truck adapters provide safe lifting for trucks equipped with running boards and other accessories.
Designed with extra lifting height for increased versatility, the PV12PX offers ample overhead clearance for vans, box trucks, and other tall vehicles. For facilities with ceiling restrictions, the Atlas® ATEXH-PV12PX can be configured in three column height settings, with the lowest height of 150" (12' 6") available when equipped with optional extra-short cables.
Extra-Wide, Extra-Tall Design for Maximum Versatility
The distance between the symmetric columns is an impressive 123¼ inches, with a drive-through space of over 109½ inches. This extra distance between the columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through with ease. Whether you're working on dually pickups, commercial vans, or vehicles with aftermarket running boards, the PV12PX accommodates them all.
The Atlas® PV12PX is now equipped with super-adjustable 3-stage lifting arms, providing exceptional versatility and expanded vehicle coverage. Each arm features three telescoping sections, allowing technicians to easily position the lift under both short and long wheelbase vehicles with greater precision. This enhanced arm design accommodates a wider range of lifting points, improves vehicle balance during lifting, and simplifies positioning in tight workspaces. The result is faster vehicle setup, increased safety, and improved productivity for busy automotive service facilities.
Adjustable Height Configuration for Any Shop
The Atlas® XH-PV12PX features three adjustable height settings to fit your specific shop ceiling requirements:
Low Setting: 150 inches (12' 6") overall height (requires purchase of additional shorter cables, sold separately)
High Setting: 177 inches (14' 9") overall height – maximum clearance for tall vehicles
This unique adjustable height capability means you can configure the PV12PX to fit your existing shop space, rather than being forced to modify your building or compromise on lift performance. The height to shut-off bar adjusts accordingly: 141 inches (11' 9") on the low setting, 156 inches (13') on the middle setting, and 168 inches (14') on the high setting.
Maximum lift height without adapters is 72¼ inches, and with adapters installed, the lift reaches an impressive 79¼ inches, providing exceptional working clearance underneath even the largest vehicles.
Key Features & Highlights
Automatic Arm Restraints – Enhanced safety during vehicle positioning
"Padded" Shut-Off Bar – Prevents damage and provides a cushioned stop
Door Guards on Carriages – Protects vehicle doors during lifting operations
Single Point Lock Release – Convenient one-handed safety lock disengagement
Dual Direct-Drive Cylinders – Reliable, synchronized lifting power
Durable Powder Coat Finish – Long-lasting corrosion resistance and professional appearance
Free 12-Piece Truck Adapter Set Included – Adds versatility for trucks, vans, and SUVs
All Mounting Hardware Included – Everything you need for installation in the box

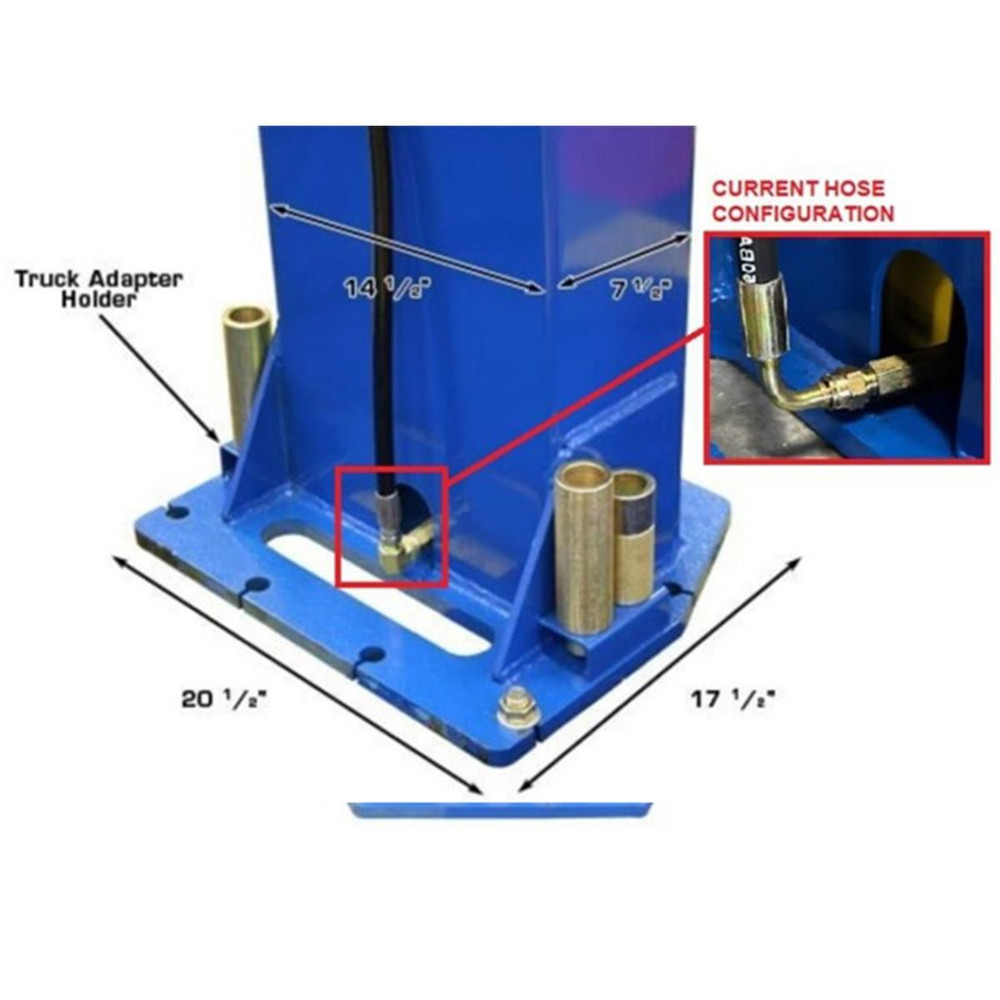

Free Truck Adapter Set Included: Every PV12PX ships with a complete 12-piece truck adapter set featuring adapters in three sizes: 1¼", 2½", and 5". This professional adapter set provides secure lifting points for trucks, vans, and SUVs with various frame configurations.
Robust Construction & Reliable Operation
Built for daily commercial use, the PV12PX features heavy-duty steel construction with a durable powder coat finish that resists corrosion and maintains a professional appearance for years. The lift is powered by dual direct-drive cylinders that deliver smooth, synchronized lifting operation without the complexity of cables or pulleys that require frequent adjustment.
The round lift pads are 5½ inches across with a 1¼ inch shank, designed to securely cradle the vehicle's lift points. The included adapter set provides 1¼", 2½", and 5" extensions, giving you the flexibility to lift vehicles with recessed or elevated frame rails.
Overall width is 150¾ inches without the motor and 159 inches with the motor installed. The distance from outside column to outside column is 138½ inches, providing a stable, wide footprint for maximum lift stability.
Electrical & Installation Requirements
The Atlas® PV12PX operates on 220V single-phase power, with a 30 amp breaker recommended for safe, reliable operation. The hydraulic system requires 3-5 gallons of AW32 or AW46 hydraulic oil for proper operation.

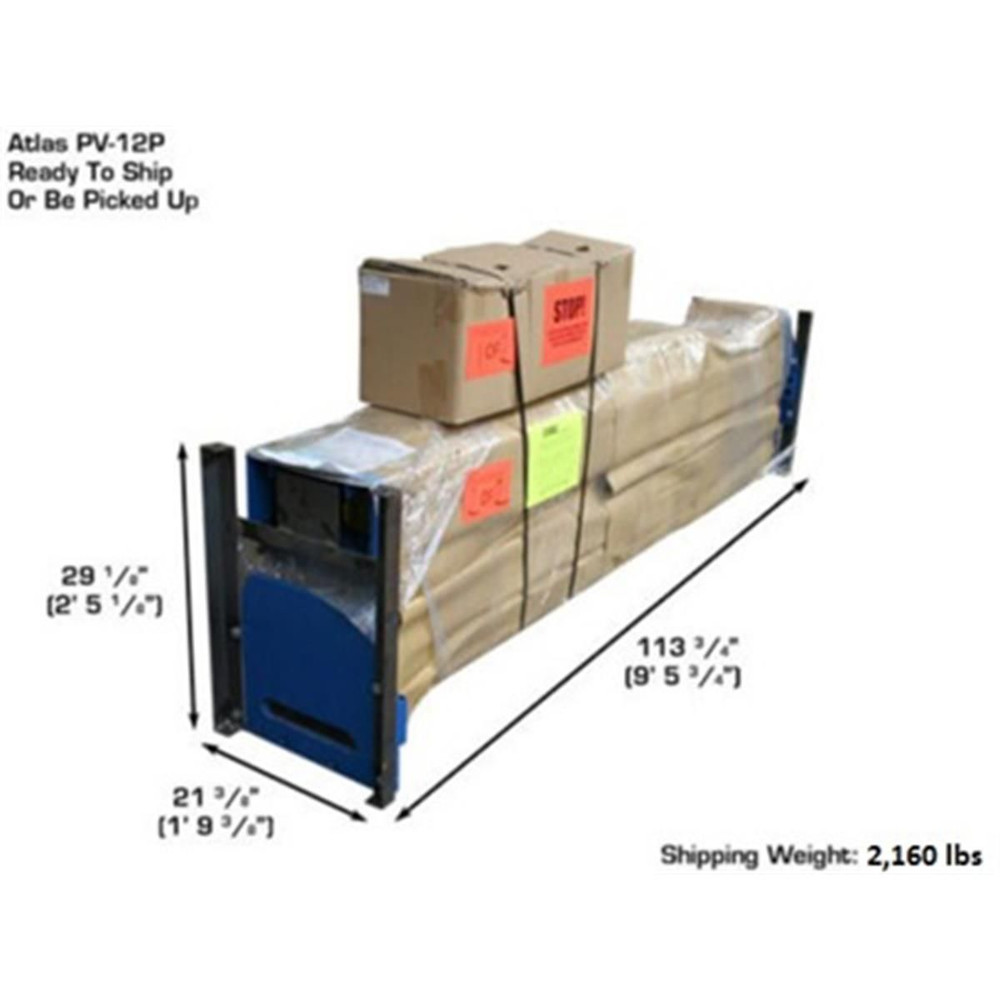

Installation requires a minimum of 6 inches of concrete with a 3500 psi rating. All necessary mounting hardware is included with the lift. With a shipping weight of 2,160 lbs, the lift arrives securely packaged and ready for professional installation.
Important Installation Note: The low height configuration (150" / 12' 6") requires the purchase of additional ATPKP-217112 shorter cables, which are sold separately. The lift ships standard with cables for the middle (165") and high (177") height configurations.
See the PV12PX in Action
Why Choose the Atlas® PV12PX?
Unmatched Versatility: The combination of extra-wide column spacing, extra-tall height, adjustable configuration options, and low minimum pad height makes the PV12PX one of the most versatile two-post lifts available. From low sports cars to tall box trucks, this lift handles them all.
Commercial Durability: Built to the same exacting standards as lifts found in professional dealerships and heavy-duty truck shops, the PV12PX delivers reliable, day-in, day-out performance. The dual direct-drive cylinder design eliminates common wear points found in cable-equalized systems.
Complete Package: With the included 12-piece truck adapter set, all mounting hardware, and comprehensive installation manual, the PV12PX arrives ready for installation. You won't need to purchase additional accessories to start lifting a wide variety of vehicles.
Backed by Atlas®: As part of the legendary Atlas® PV series, this lift benefits from over a decade of continuous refinement and improvement. The PV series has earned a reputation as one of the toughest, most reliable lift lines in the industry, with thousands of satisfied customers nationwide.
Looking for full specifications and features? Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
