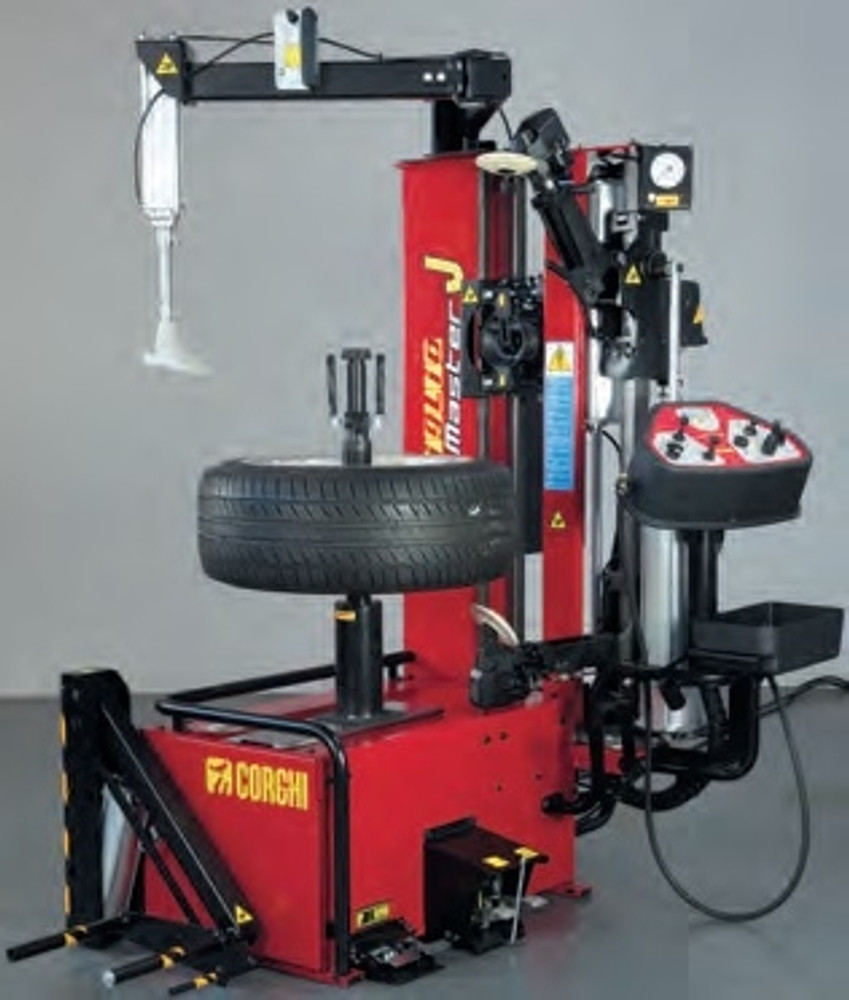

Corghi Artiglio Master J Touchless Tire Changer


Corghi Artiglio Master J Touchless Tire Changer
Corghi Master J



Alternative Views:


List Price: $32,000.00
: $19,080.00






Product Code: MASTERJ

Delivery Options

Lift Gate Delivery?*:
No, I have a way to get it off the truck.
Yes, I need it lift gated to me. [Add $110.00]
Drop it off at a local freight terminal.
Delivery Notice

24 Hour Delivery Notice*:

Optional Corghi Accessories

# 8-11100046:
Spacer Set (6 each) [Add $236.90]

# 8-11100073:
Reverse Mount Adapter [Add $952.00]

# 8-11100087:
Clad Wheel Adapter [Add $952.00]

#8-11400341:
TI Kit - ASME Quick Inflation System for AM26 & Master J [Add $1,230.50]
Tire/Wheel Service Equipment Options

Basic Wheel Weight:
#Wheel-WT-Basic - Basic Wheel Weight Set [Add $250.00] more info

Deluxe Wheel Weight:
#Wheel-WT-Deluxe - Deluxe Wheel Weight Set [Add $365.00] more info

#12:
Rema Tip Top #12 Car/Truck Tire Puncture Repair Kit [Add $470.00] more info

#14-650:
X•tra Seal 14-650 Car/Truck Tire Nail Hole Repair Kit [Add $415.00] more info
Optional Accessories

NW-TC-ATSB:
TC-ATSB Adjustable Tire Spreader w/Base [Add $141.00] more info

NW-TS-250:
Tire Spreader [Add $410.00] more info

BJ-M275:
Talyn Vertical Manual Tire Spreader [Add $325.00] more info

#ATD-9905-02:
ATD 9905 5-Gallon Bead Seater [Add $178.25] more info

Qty:
Description Technical Specifications Warranty

Corghi Artiglio Master J Touchless Tire Changer

download manual

Since 2001, the year our “Leva la leva” technology was introduced, many hurried to chase after us, presenting their own solutions. They called their solutions "no lever", or "leverless", or the "automatic lever system". The truth is however that no one has been able to copy the patented “Leva la leva” system with the “SMART Corghi System” device, the only existing solution that:

  • NEVER TOUCHES THE RIM, during any working phase
  • annuls all tension on the tire during the tire demounting/mounting phases.

This is the difference between Corghi and the others.
Artiglio Master J has this technology at its core offered in a very competitive price. A perfect synthesis between tested constructive quality, unique technological solutions and a competitive price represents the ideal machine and a perfect balance for an investment. Since 2001 this has guaranteed our customers a technological advantage that has remained unmatched over time. NOT ALL LEVA LA LEVA SOLUTIONS ARE EQUAL! And we are well aware of this.

Features
  • Available in electric only.

display panelDisplay Panel
Ergonomic and multifunctional consoles with a display that makes it possible to electronically set the rim diameter and obtain the positioning of the work tools in a quick, practical and safe manner. Divided into three distinct work areas, it makes it easier to immediately recognize movements and makes the system easier to use for the operator

bead breaking device

Bead Breaker
Dynamic bead breaking device with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator.

Controlled penetration (Patent Pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.

bead breaking device

Demounting and Mounting Tool
Bead demounting and mounting tool with automatic bead searching and Smart Corghi System demounting movement is able to reduce the tension on the tire without ever touching the rim.


bead demounting and mounting tool


Automatic location of the tire bead, with no contact with the rim itself, regardless of its shape.

SAFE AND UNIVERSAL WHEEL CLAMPINGSafe & Universal Wheel Clamping
The axial mounting turntable ensures rapid clamping while permitting bead breaking on both sides without having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimized for ideal operator ergonomics with all wheel types.

Axial mounting turntable

Axial Mounting Turntable
Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).

SAFE AND UNIVERSAL WHEEL CLAMPINGBottom Bead Demounting
Rapid bottom bead demounting procedure with bead breaker disc (particularly useful with stiff sidewalls)

bead depressor

Bead Depressor

  • Bead depressor with adjustable working height
  • Depressor shape ideal for RFT tires
  • Standard in all versions

Fixed work positionFixed Work Position
Pedals, consoles, tray and wheel loading on the same side and a constant working height to obtain perfectly ergonomic movements.

wheel lifter

Wheel Lifter

EFFORTLESS OPERATION a wheel lifter for effortlessly placing wheels of any type onto the turntable (standard accessory)


Master J features


To View or Download Corghi's Customer Loyalty Program Click Here.

Installation and training will be provided on the purchase of all new machines except the @120 changer, @601 balancer, TS24 Tire Dunker, IC90 Inflation Station and all Service Pro models
