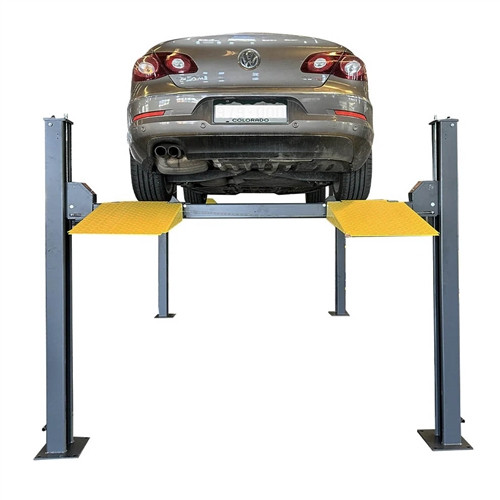

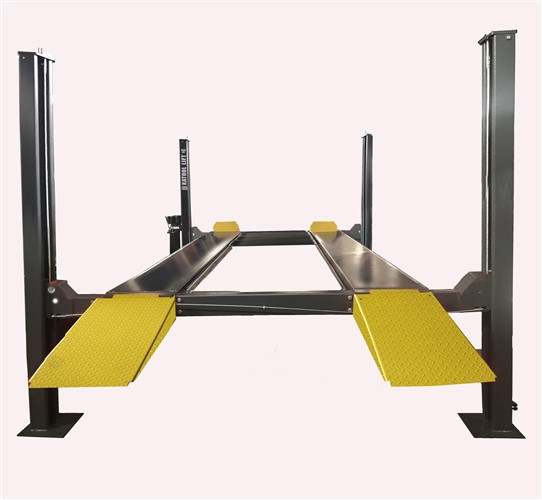

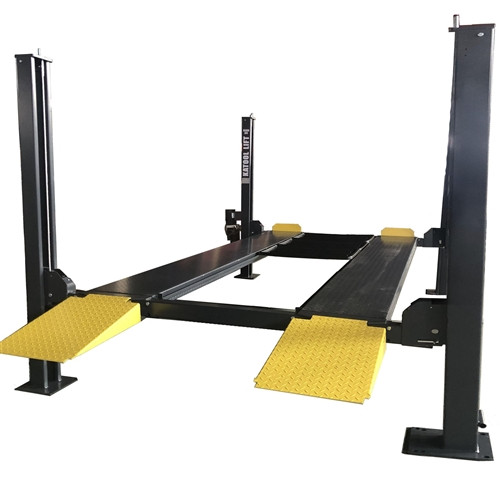

The Katool KT-4H850 is a four-post car lift designed to deliver reliable performance for home garages, automotive shops, and professional service facilities. With an 8,500 lb lifting capacity, this lift handles a wide range of vehicles from sedans and coupes to SUVs and light trucks. Built with safety and convenience in mind, the KT-4H850 is CE Approved and Certified, meeting rigorous testing standards including 115% dynamic loading capacity and 150% static loading capacity tests—ensuring you're working on a platform engineered for safety and peace of mind.
What sets the KT-4H850 apart is its thoughtful engineering and included accessories. From the single-point manual safety lock release for easy operation to the four mechanical locking devices with a secondary slack-cable safety system that engages in the unlikely event of cable failure, every detail is designed to protect you and your investment. The power side column can be installed on both sides, front, or rear, giving you flexibility to configure the lift to match your workspace layout. Add in non-skid diamond platforms, adjustable safety lock ladders, and a high-quality hydraulic system powered by 110V/60HZ/1PH (with 220V optional), and you have a complete lifting solution ready to go to work.
The KT-4H850 comes complete with a caster kit for easy mobility around your shop, three drip trays to keep your workspace clean, and a jack tray for convenient tool storage. With a max lifting height of 70.87", 82" drive-thru clearance, and a 75-second lifting time (40 seconds down), this lift combines speed, safety, and versatility in one professional package.

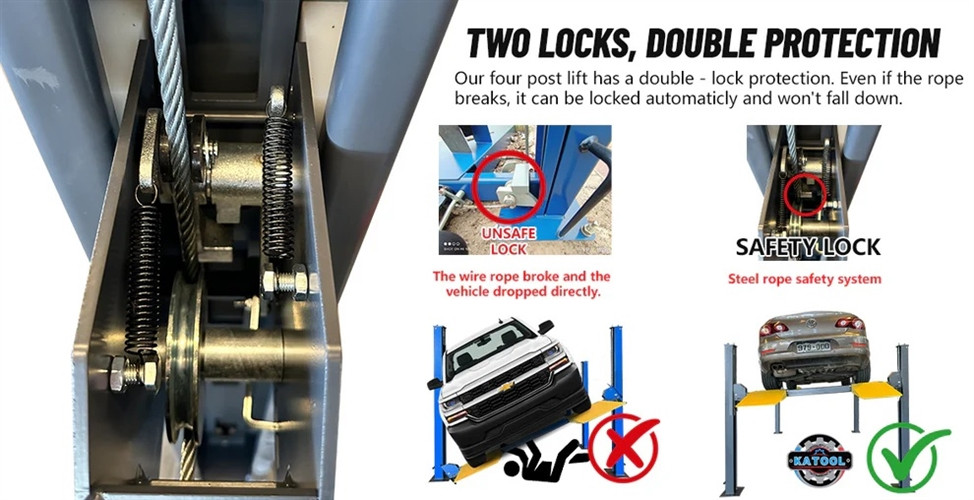

Safety is paramount when lifting thousands of pounds overhead, and the KT-4H850 delivers multiple layers of protection. The four mechanical locking devices secure the lift at multiple height positions, while the secondary slack-cable safety system acts as a fail-safe, engaging automatically if a cable were to fail. The single-point manual safety lock release makes it simple to lower the vehicle safely and efficiently. Non-skid diamond platforms provide secure footing and protect vehicle tires, while the adjustable safety lock ladders give you precise control over lifting height.

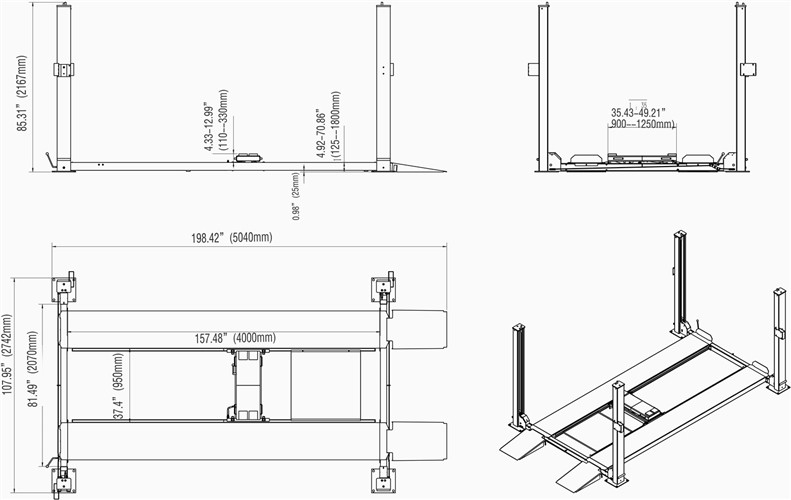

Beyond safety, this lift is built for real-world use. The included caster kit allows you to reposition the lift as needed—perfect for shops that need flexibility or home garages with limited space. The three drip trays catch fluids and keep your floor clean during maintenance, and the jack tray keeps your floor jack within easy reach. With an overall length of 198.43" (including ramps), 107.95" overall width, and a drive-thru clearance of 82", the KT-4H850 fits most garage spaces while offering generous room for working underneath vehicles.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Important Installation Requirement:
Concrete thickness must be at least 3.93" (100 MM) with a 3000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
California Prop 65 Warning:
This product can contain certain metals/chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
4 Post Lift Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more: Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
For the full warranty terms, disclaimer, and conditions Click Here
