The Coats® 1600-3D Direct Drive Wheel Balancer represents the pinnacle of professional wheel balancing technology. Engineered from the ground up to deliver precision performance balances for your customers, every feature of the 1600-3D has been meticulously designed to eliminate technician error, accelerate workflow, and ensure consistently accurate results. With 8 balancing modes, automatic 3-D data entry, and the revolutionary ProBalance Technology™, this machine handles everything from compact car wheels to 44-inch diameter tires weighing up to 160 lbs with unmatched speed and accuracy.
Whether you're balancing standard passenger vehicles or large truck tires, the 1600-3D delivers professional-grade performance backed by Direct Drive™ technology that stays calibrated to zero and a robust 3-year parts warranty. The intuitive touchscreen interface enables touch-free operation for approximately 85% of wheel balances, while laser-guided operation pinpoints exact weight placement locations—both radially and axially—eliminating guesswork and trial-and-error adjustments. Built for high-volume shops that demand reliability, precision, and speed.
The Coats 1600-3D isn't just another wheel balancer—it's a complete balancing solution designed to enhance productivity and profitability:

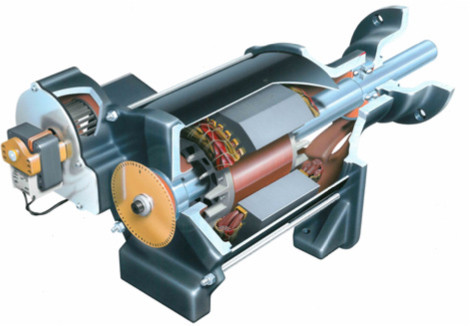

Powered by Direct Drive™
The heart of the 1600-3D is its revolutionary Direct Drive™ system. Unlike traditional belt-driven balancers, the motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero. This eliminates drift over time, reduces maintenance requirements, and ensures that every balance is as accurate as the first. No belts to slip, no calibration drift—just consistent, precise performance day after day.
ProBalance Technology™
ProBalance Technology™ represents a breakthrough in wheel balancing methodology. This unique balancing algorithm and unbalance correction system minimizes both static and couple unbalance simultaneously, delivering superior ride quality and extending tire life. Your customers will notice the difference—smoother rides, less vibration, and improved vehicle handling. It's the kind of performance that builds customer loyalty and repeat business.

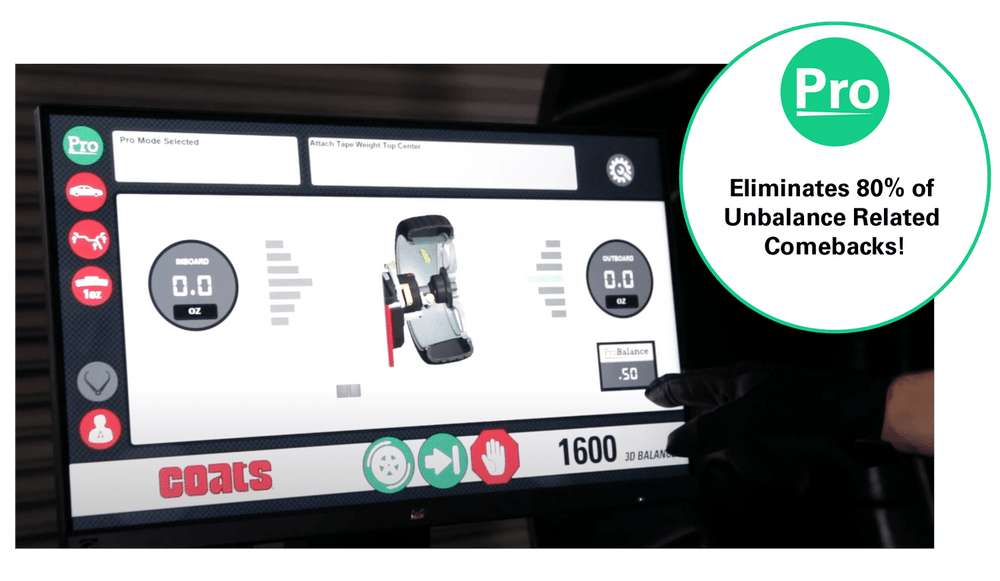

Touchscreen with Weight Location Recognition
The advanced touchscreen interface on the 1600-3D offers touch-free operation for approximately 85% of wheel balances. The weight location recognition system automatically identifies where weights should be placed, eliminating manual input and speeding up the entire process. Built to withstand the demands of busy tire shops, the touchscreen is durable, responsive, and can be used while wearing gloves—keeping your technicians moving without interruption.
Stop, Lock & Index
Technician efficiency reaches new heights with the Stop, Lock & Index feature. The 1600-3D automatically positions the wheel at the precise weight placement location and locks the spindle firmly in place. This ensures easy, accurate weight application every single time—no guessing, no repositioning, no wasted motion. Your technicians simply apply the weight exactly where the machine indicates, resulting in faster balances and flawless accuracy.
3-Dimension Automatic Data Entry
Manual wheel measurements are a thing of the past. The 1600-3D offers fully automatic 3-D data entry of distance, diameter, and width. The system measures all three dimensions instantly and accurately, completely eliminating the chance of technician error and dramatically speeding up the balancing process. More balances per hour, fewer comebacks, and greater profitability—all thanks to automated precision measurement.
Laser Guided Operation
Precision is everything in wheel balancing, and the 1600-3D's laser-guided operation delivers it in spades. The integrated laser system pinpoints the exact weight location—both radially and axially—eliminating all trial and error. Your technicians see exactly where to place weights with millimeter accuracy, ensuring perfect balances every time and dramatically reducing the learning curve for new employees.
The Coats 1600-3D arrives ready to work with a comprehensive Basic Adapter Kit and an array of professional accessories designed to handle any wheel balancing scenario. Included are NEW Collet Adapters for secure wheel mounting, premium calipers, a wheel weight hammer, quick-nut system, pressure cups, no-mar rings, and convenient side storage to keep everything organized and within arm's reach. With 3 weight trays and a dedicated side shadow board, your shop stays efficient and clutter-free.
The Double Sided Collet Kit accommodates hub sizes from 2.04" to 5.2" (52mm-132mm), ensuring compatibility with virtually any vehicle that rolls into your bay. The 40mm shaft diameter provides strength and stability even when balancing heavy truck tires up to 160 lbs.
With a footprint of 75" H x 57" W x 55" D, the 1600-3D is sized to fit into most professional tire shop layouts while providing ample capacity for large wheels. The machine's robust construction is reflected in its 650 lbs shipping weight, ensuring stability and vibration-free operation even during high-speed spin cycles.
Available in both 220V single-phase (Part Number 80016003D) and 220V three-phase (Part Number 80016003D01) configurations, the 1600-3D adapts to your shop's existing electrical infrastructure. Backed by a 3-year parts warranty and 6 months labor coverage, this is a machine you can count on for years of reliable, profitable service.
