This comprehensive motorcycle tire service combo brings together the Atlas® TC289 rim-clamp swing arm tire changer with built-in bead blaster and the Atlas® WB41 computerized spin balancer to create a complete motorcycle tire changing and balancing solution. Designed specifically for motorcycle enthusiasts, dealerships, and professional service shops, this package includes specialized motorcycle adapters for both the changer and balancer. Whether you're servicing sportbikes, cruisers, adventure bikes, or other motorcycles, this combo delivers the professional-grade performance and precision you need. Both machines operate on standard 110V power and are CE approved, backed by the Atlas® 1-year parts warranty.

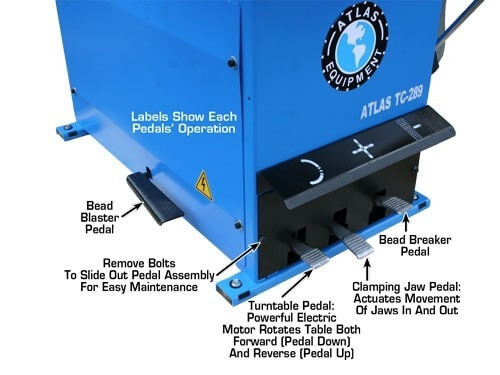

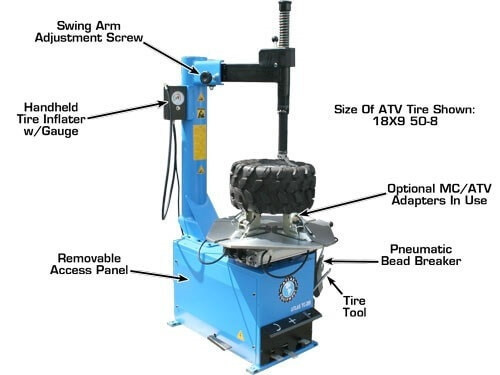

The Atlas® TC289 wheel clamp tire changer is an extremely versatile machine perfect for automotive service departments and medium-sized tire shops. While powerful enough to handle tires on large SUVs and one-ton trucks with a maximum tire diameter of 47", it truly shines with the included deluxe motorcycle adapters. This tire changer works with steel, aluminum, and alloy rims, ensuring you can service virtually any wheel that comes into your shop without worrying about damage to expensive finishes.
The design of the Atlas® wheel clamp tire changers prioritizes rim protection while delivering exceptional performance. The adjustable bead breaker located on the side of the machine delivers 5500 lbs. of force to break even the most stubborn and rusted beads without causing damage to the rim. The turntable jaws, which can be covered with the included plastic rim protectors, hold the rim securely without marring the surface. These jaws feature three adjustable mounting positions along the turntable slides, allowing you to increase or decrease the clamping range to accommodate different wheel sizes. The outside locking rim clamp adjusts from 11 7/8" to 27 7/8", while the inside locking rim clamp ranges from 13 7/8" to 29 7/8".

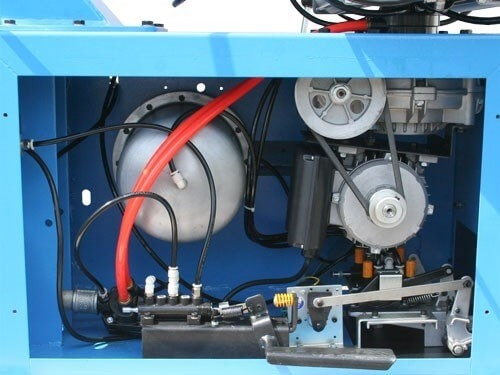

The built-in bead blaster system sets the TC289 apart from basic tire changers, providing the air blast needed to properly seat stubborn beads. The machine includes an inflation box with gauge for safe tire inflation. Powered by a 1 HP motor delivering 885 ft/lbs. of turntable rotating torque, the TC289 handles demanding tire changes with ease. The machine requires 90-110 PSI air pressure from your shop compressor (maximum inlet pressure not to exceed 140 PSI).
The rim clamp/swing arm design with extra-large turntable provides generous clearance for motorcycle wheels and larger vehicle wheels alike. The adjustable bead breaker plate accommodates a maximum wheel width of 18" at the bead breaker. The TC289 ships with everything you need to start working immediately: oiler, filter, regulator (external air supply required), four black plastic rim protectors, tire tool, lube bucket, lube brush, and multiple replacement plastic inserts for the mount/demount head. For motorcycle work, the combo includes deluxe motorcycle adapters with one set of small plastic jaw protectors. ATV adapters are available separately for shops that service ATVs as well.
The Atlas® WB-41 is a simple yet sophisticated wheel balancer that combines ease of use with advanced diagnostic capabilities. This balancer features self-calibration and self-diagnosis functions that display error codes, allowing operators to make necessary adjustments or repairs in their own shop without waiting for expensive service technician visits. Each electrical component is virtually "plug and play," making repairs straightforward when parts need replacement. This simplicity in both operation and maintenance makes the WB-41 an excellent choice for professional tire shops and motorcycle dealerships.
The WB-41 accurately balances wheels up to 150 lbs. and handles rim diameters from 10" to 32" for cars and light trucks, with a rim width range of 1 ½" to 20". The 40mm shaft provides robust support, while the maximum tire diameter capacity reaches 39". What sets the Atlas® WB-41 apart is that the balancer can truly accurately balance heavy wheel assemblies, not just support their weight—a critical distinction for professional-quality results.
Operating at a balancing speed of 150 RPM, the WB-41 delivers 1-gram accuracy with 1.4° weight position resolution. The balancer offers both static and dynamic balancing modes and includes rapid optimization (OPT) for faster service times. The automatic and pedal-operated brake provides convenient control, while the automatic start/stop function activates when the hood is lowered or raised. Exceptional stability in reading unbalance between planes ensures consistent, reliable results.
Data entry is fully manual for all dimensions, giving you complete control over the balancing process. The display shows measurements in either grams or ounces and mm or inches, accommodating both standard and metric preferences. The ¼ HP motor runs on 110V power, and the balancer requires no anchor-down installation, allowing for flexible shop placement. The machine includes 4 centering cones, plastic quick-nut, wheel weight pliers, and wheel measuring calipers to get you started.

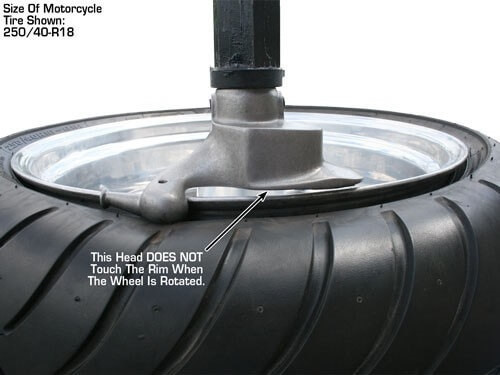

This combo package is specifically configured for motorcycle work with a comprehensive set of specialized adapters and accessories. The tire changer includes ATTC-DX-MC-SPJP Deluxe Motorcycle Adapters and ATTC-SPJP Plastic Jaw Protectors to safely handle motorcycle rims. The wheel balancer comes with multiple motorcycle-specific accessories: the ATWB-MCKIT-NEW 9-1/4" Hub Assembly Motorcycle Adapter Kit, ATWB-MCXLTKIT-NEW 13-3/4" Hub Assembly Motorcycle Adapter MC-XLT Kit, and the ATWB-SSA Spoke Support Adapter (SSA) for spoke wheels. This comprehensive accessory package ensures you can service virtually any motorcycle wheel that rolls into your shop, from sportbike wheels to cruiser spoke wheels.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
