Mahle ACX2280 ArcticPROŽ R1234yf Refrigerant Handling System

Mahle ACX2280 ArcticPRO® R1234yf Refrigerant Handling System
Mahle ACX2280 ArcticPROŽ

Alternative Views:

List Price: $11,998.98
: $5,999.99

Product Code: RTI-ACX2280

Delivery Options

Lift Gate Delivery?*:
No, I have a way to get it off the truck.
Yes, I need it lift gated to me. [Add $95.00]
Drop it off at a local freight terminal.
ArcticPROŽ Options Available

#011 80070 00:
Vacuum Pump Oil, 1 Quart [Add $8.70]

#026 80635 00:
R12/R134a/R1234yf LD-2 Electronic Leak Detector w/ UV Light [Add $193.04]

#026 80699 00:
Oil Drain Bottle [Add $25.33]

#360 82953 00:
1/2 LH Acme External Tank Adapter [Add $9.45]

#360 83110 00:
Thermal Paper Printer Kit 5PK [Add $18.50]

Description Technical Specifications Warranty
Mahle ACX2280 Economy R1234yf Refrigerant Handling System

The most advanced R1234yf unit on the market today, the ArcticPRO ACX2280 and ACX2250 R1234yf Refrigerant Handling Systems offer your shop the ultimate in refrigerant recycling machines. Our newest professional units deliver a unique service door that is ergonomic in its design and an intuitive, state of the art user interface providing an optimal environment for fully automatic A/C service and simple unit maintenance. For a streamlined shop and safe and precise A/C refrigerant handling, rely on ArcticPRO.

  • State-of-the-Art. Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
  • Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
  • Status Indicator. LED light indicates status visible from anywhere in the workshop.
  • Smart. iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
  • Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
  • Oil System Management. Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service.
  • Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
  • Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
  • Integrated Refrigerant Identifier. Adds additional convenience and saves time on services.
  • Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage and a two year standard warranty.
  • Network Printing. Retains valuable service records, network printing capability to print services provided for customer.


  • 360 82948 00 Red Hose R1234YF
  • 360 82949 00 Blue Hose R1234YF
  • 360 82951 00 Quick Release Low Side Coupling R1234YF

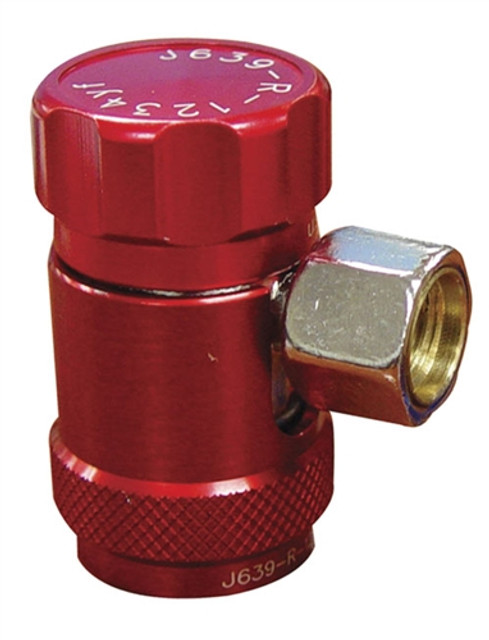

  • 360 82950 00 Quick Release High Side Coupling R1234YF

Optional Accessories Available

  • 360 83254 00 Filter Combo
  • 026 80785 00 Dust Cover
  • 026 80698 00 Oil Charge Bottle
  • 026 80699 00 Oil Drain Bottle
  • 360 82744 00 Calibration Check Ball
  • 360 82953 00 Adaptor LP (External Bottle) USACME 1/2 LH R1234YF
  • 026 80635 00 LD-2 Leak Detector R1234YF
  • 026 80700 00 Vacuum Pump VE215
  • 011 80070 00 Vacuum Pump Oil (Quart)
  • 360 83269 00 Thermal Printer Installation Kit
  • 360 83110 00 Thermal Printer Paper 5PK
  • 024 80205 00 Power Filter 15A
