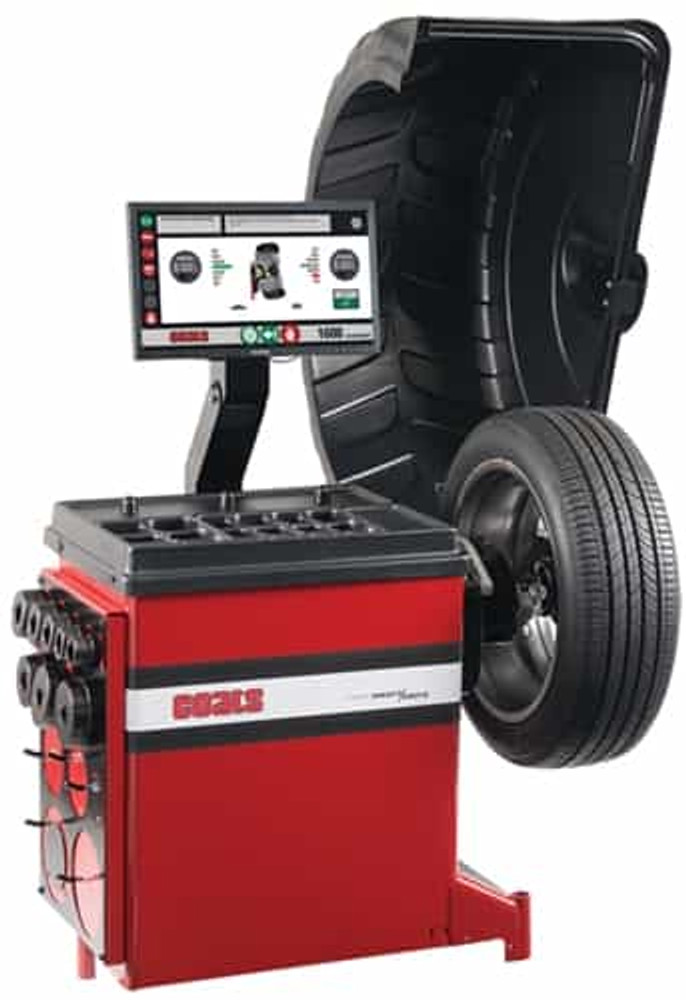

Coats® 1600-3D Direct Drive Wheel Balancer

Coats® 1600-3D

Coats® 1600-3D Direct Drive Wheel Balancer

made in USA
This Item Will Has a 12-15 Business Day Lead-Time

Limited Time Offer $750 Rebate Valid thru October 27th thru December 15th! Rebate Code SEMA24US. To See full Details Click Here. To Redeem rebate rebate.ammcoats.com Offers are valid for end-user customers in the 50 United States only, NOT VALID for schools, tech schools, or government agencies. Must submit your rebate request online no later than January 31, 2025
List Price: $15,664.58
$
You save $!
This product qualifies for FREE SHIPPING!
Product Code: Coats1600
Choose your options:
Delivery Options
Lift Gate Delivery?(required):
Select a Motor
Pick a Phase(required):
Tire/Wheel Service Equipment Options
Basic Wheel Weight(optional):
Deluxe Wheel Weight(optional):
Optional Accessories
# 113277C(optional):
# 800525(optional):
Tire/Wheel Service Equipment Options
#12(optional):
#14-650(optional):
Optional Accessories
NW-TC-ATSB(optional):
NW-TS-250(optional):
BJ-M275(optional):
Coats® 1600-3D Direct Drive Wheel Balancer

download manual

Every feature of the 1600 was designed to deliver a performance balance for your customers.

Coats 1600 Direct Drive

Powered by Direct DriveTM
Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

Coats 1600 Pro Balance Technology

ProBalance TechnologyTM
A unique balancing algorithm and unbalance correction methodology that minimizes both static and couple unbalance

touchscreen

Touchscreen
The weight location recognition system offers touch-free operation for ≈85% of wheel balances. The touchscreen system is built to last and can be used while wearing gloves.

Coats 1600 Stop Lock & Index

Stop, Lock & Index
Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.

Coats 1600 3-D Auto Data Entry

3-Dimension Automatic Data Entry
The 1600 offers automatic data entry of the distance, diameter and width. This eliminates the chance of technician error and speeds up the balancing process.

 Laser Guided Operation

Laser Guided Operation
Pinpoints the exact weight location, both radially and axially and eliminates trial and error.

  • Powered by Direct Drive
  • ProBalance Technology™
  • Touchscreen
  • Automatic 3-D Data Entry
  • Basic Adapter Kit Included
  • NEW Collet Adapters
  • Side Storage

Accessories Included

Part NumberDescriptions
85608850Stud - Weight Tray (3)
85609499 Double Sided Collet Kit - 2.04" - 5.2" (52 mm- 132mm)
8309011Calipers
85607780Premium Wheel Weight Hammer
85607503Premium Quicknut
8112106Small Pressure Cup & Rubber Lip
85608312No Mar Ring
8112107Spring
8113390Scraper
85610715Side Shadow Board
Specifications1600-3D
Balancing Modes8
Wheel Diameter Range8" to 30"
Wheel Width Range2" - 20"
Maximum Tire DiameterUp to 44"
Maximum Tire Weight160 lbs.
Shaft Diameter40 mm
InterfaceTouchscreen
Automatic Data EntryDistance/Diameter/Width
Electrical Requirements220v, 1ph or 220v, 3ph
Warranty3 Year Parts, 6 Months Labor
Footprint75" H x 57" W x 55" D
Shipping Weight650 lbs.
Part Number80016003D - 1ph
80016003D01 - 3ph
  • 3 Year Parts, 6 Months Labor
