AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs
AMGO powerful 4-post lift provides a generous lifting capacity and features extra wide runways to accommodate a wide variety of vehicle types and wheel bases.

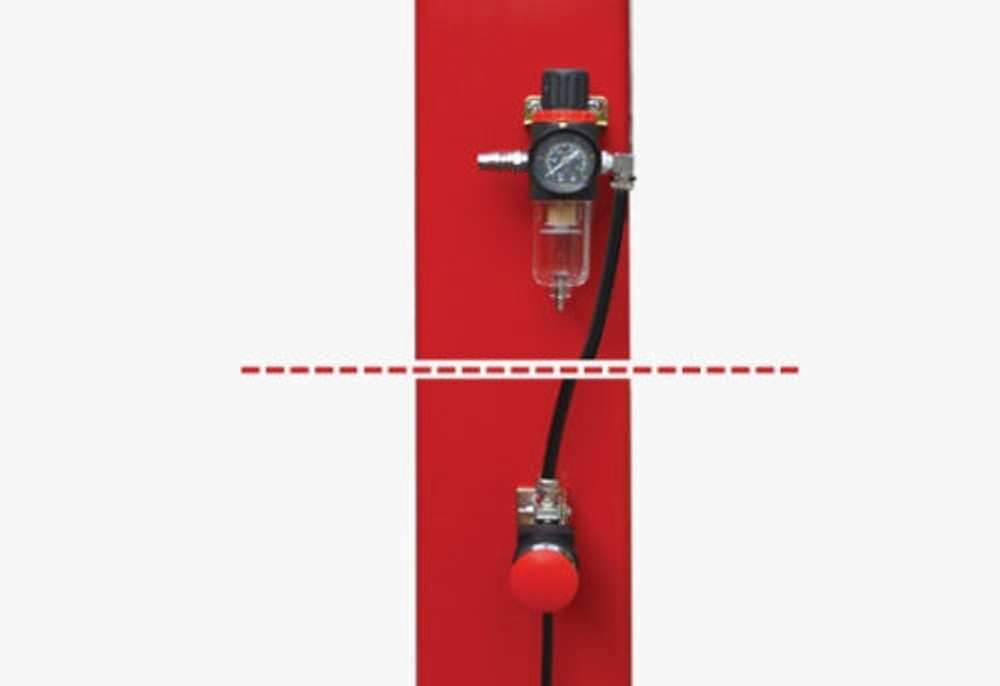

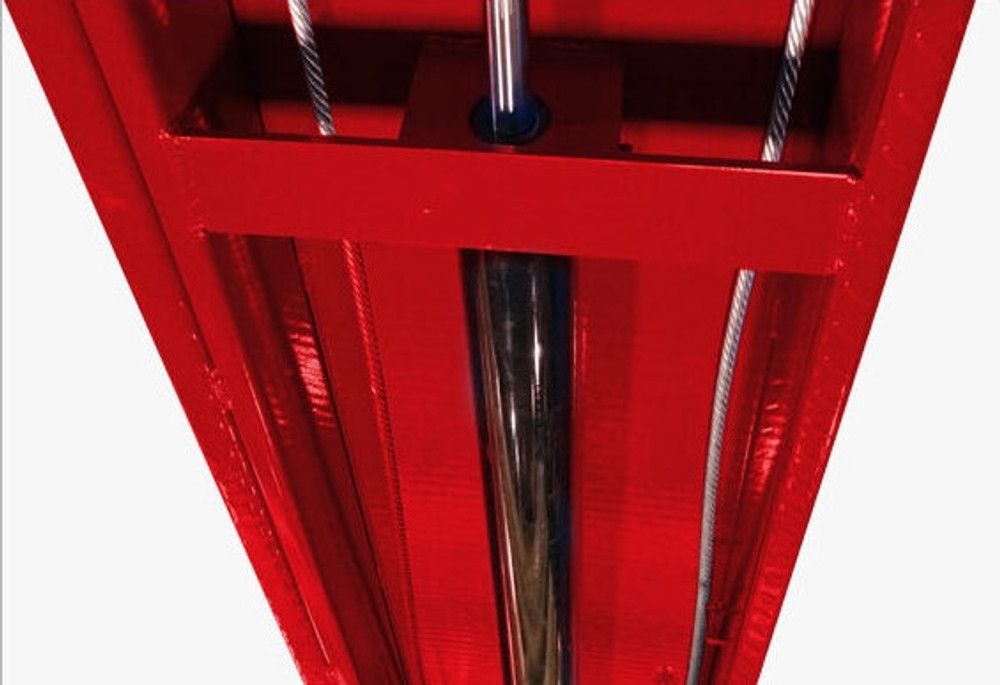

The PRO-14E heavy-duty 4-Post truck lift with extended runway and 14,000lbs lifting capacity, includes air release safety locks, mechanical self-locking device and cable-breaking protection.
|
Model
|
PRO-14
|
PRO-14E
|
|
Style
|
Non Alignment
|
|
Lifting Capacity
|
14,000 lbs
|
|
A - Overall Length w/Ramp
|
257 1/2" (6525mm)
|
286" (7265mm)
|
|
B - Overall Length w/o Ramp
|
216 1/2" (5500mm)
|
245" (6224mm)
|
|
C - Overall Width
|
130 7/8" (3324mm)
|
|
D - Width Between Columns
|
116" (2946mm)
|
|
E - Lifting Height
|
73 1/2" (1865mm)
|
|
F - Overall Height
|
86" (2185mm)
|
|
G - Minimum Height
|
7 7/8" (200mm)
|
|
H - Max. Underneath Height
|
66 3/4" (1695mm)
|
|
I - Drive-Thru Clearance
|
102 1/8″ (2592mm)
|
|
J - Width Between Runways
|
47" (1194mm) / Max. 54 1/2" (1385mm)
|
|
K - Outside Edge of Runways
|
87" (2210mm) / Max. 94 1/2" (2401mm)
|
|
Motor
|
2.0HP, 220V/60Hz Single Phase
|
|
Gross Weight
|
2,791lbs (1,266kg)
|
2,945lbs (1,336kg)
|
Click on Image to Download or Enlarge It
Warranty Information
- Five-year Warranty on Steel Components
- Three-year Warranty on Hydraulic Parts
- Two Years on Electrical Components
To View AMGO® Hydraulics Warranty Click Here
|
|
|
 |
|
 |
|
